Removal Procedure
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Front Compartment Air Deflector - Remove - Front Compartment Air Deflector Replacement

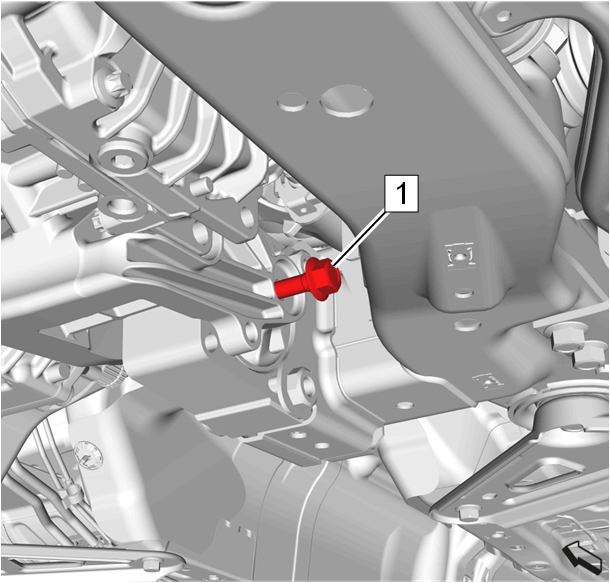

Transmission Rear Mount Bolt (1) - Remove and DISCARD [2x]
Loosen the transmission rear mount through bolt (1).
Remove and DISCARD the 3 transmission rear mount bracket bolts (1).
- Remove the transmission rear mount bracket, transmission rear mount and transmission rear mount through bolt as an assembly from the vehicle.

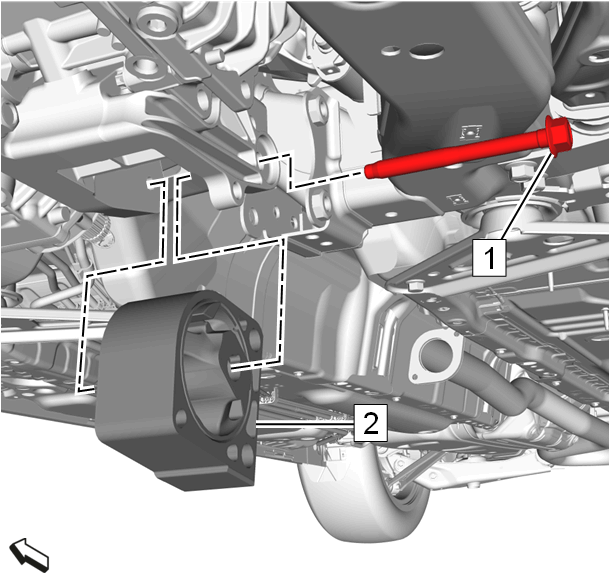

Remove the transmission rear mount through bolt (1).
- Transmission Rear Mount (2) - Remove
