Removal Procedure
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
- Set the parking brake.
- Shift the transmission control lever into Reverse position.

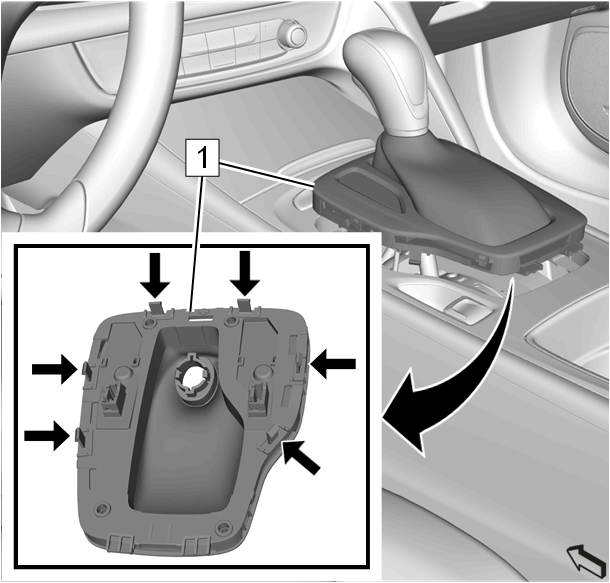

Gently release the transmission control lever boot bezel (1) at the front. Unclip 6 retainers (arrows), using a flat bladed tool.
- Pull the transmission control lever boot bezel up to gain access to the electrical connector.

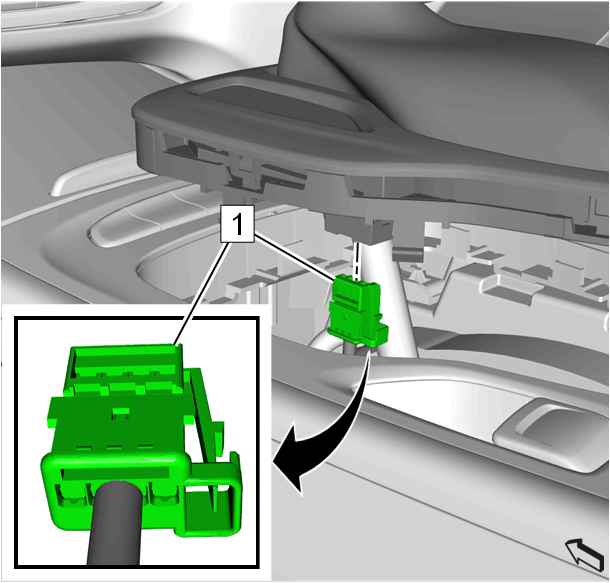

Electrical Connector (1) - Disconnect

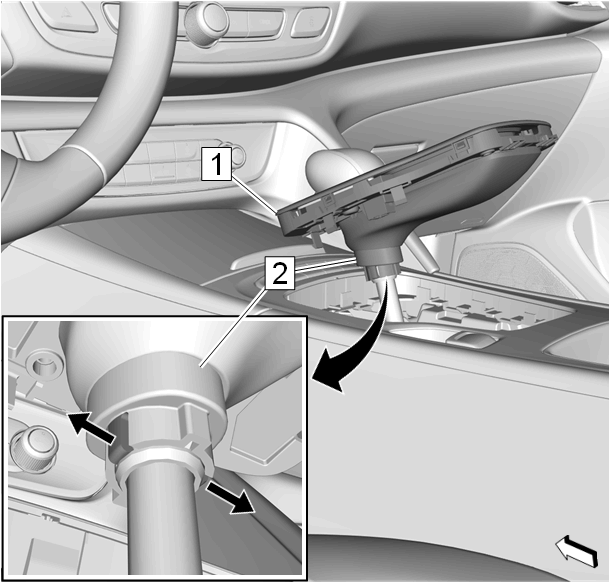

Pull the transmission control lever boot bezel (1) up to gain access to the transmission control lever boot retaining ring (2).
- Release (arrows) the 2 latches of the transmission control lever boot retaining ring to separate the transmission control lever boot from the transmission control lever knob.
- Push the transmission control lever boot bezel along with the retaining ring down to gain access to the transmission control lever knob fastener.

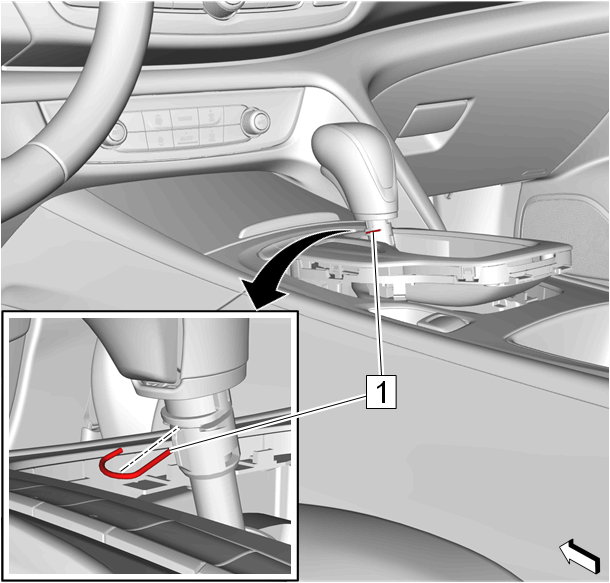

Transmission Control Lever Knob Fastener (1) - Remove

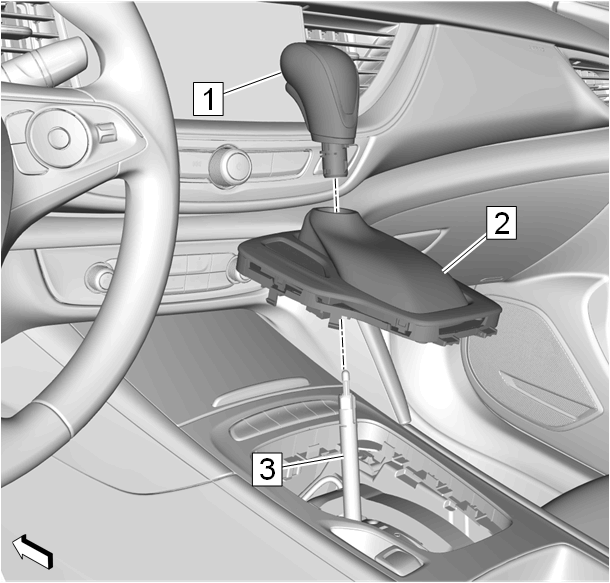

Transmission Control Lever Knob (1) @ Transmission Control Lever (3) - Remove
- Transmission Control Lever Boot (2) @ Transmission Control Lever - Remove
