Installation Procedure
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Transmission Control Lever Boot (2) @ Transmission Control Lever (3) - Install
- Transmission Control Lever Knob (1) @ Transmission Control Lever - Install
- NOTE:
Ensure the correct orientation of the transmission control lever knob fastener.
Transmission Control Lever Knob Fastener (1) - Install
- Check the transmission control lever knob for proper seat by pulling and twisting.

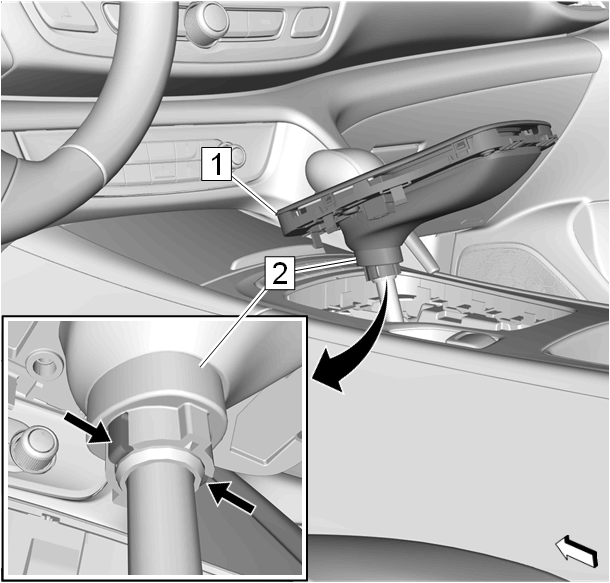

Pull the transmission control lever boot bezel (1) along with the transmission control lever boot retaining ring (2) up.
- Install the transmission control lever boot retaining ring to the transmission control lever knob. The 2 latches (arrows) of the transmission control lever boot retaining ring must engage noticeable.
- Push the transmission control lever boot bezel down.
Electrical Connector (1) - Connect
Install the transmission control lever boot bezel (1). First install the bezel at the rear then clip in the front of the bezel. Clip in 6 retainers (arrows).
- Shift the transmission control lever into "P" position.
- Release the parking brake.
