Front Wheel Drive Shaft Seal Replacement - Right Side

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Wheel Drive Half Shaft Replacement - Right Side (AWD) , or Front Wheel Drive Half Shaft Replacement - Right Side (FWD)

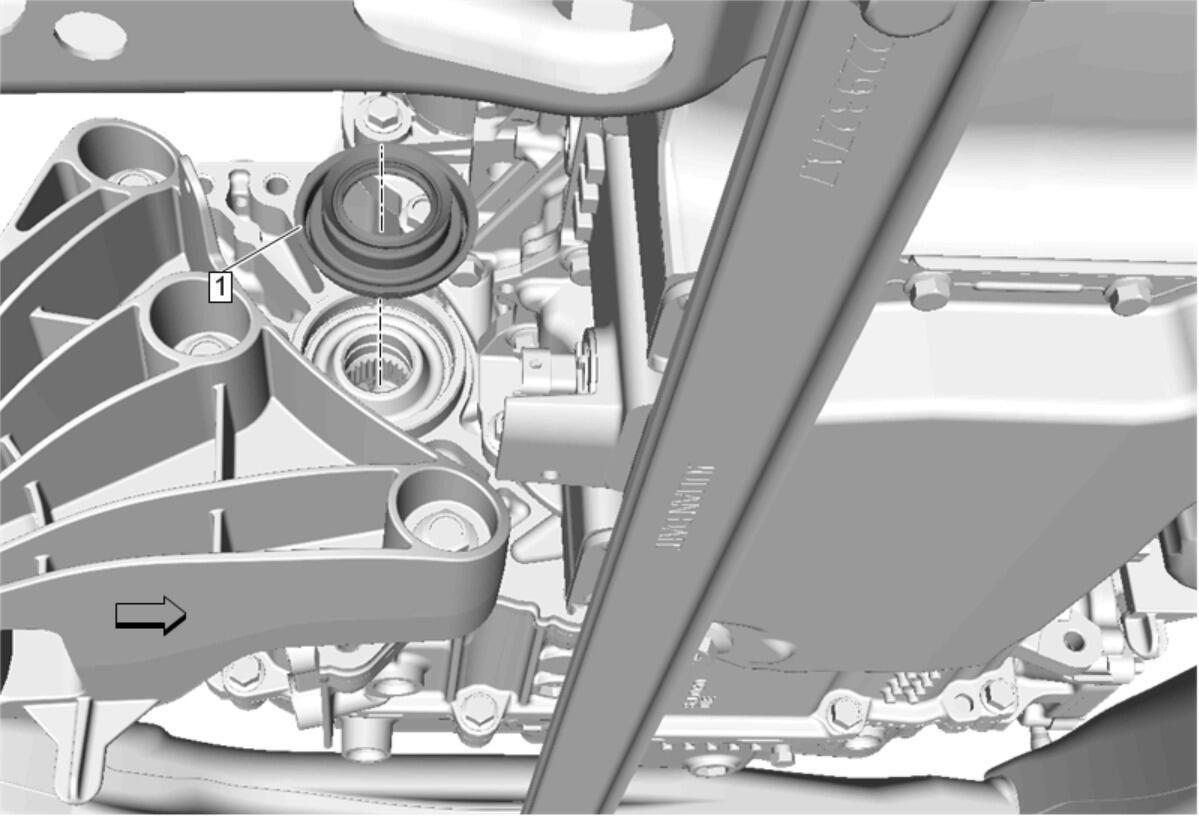

1	Right Front Wheel Drive Shaft Oil Seal Procedure For seal removal use GE-6125-1B slide hammer with DT-23129 universal seal remover. For seal installation use GE-8092 driver handle with DT-47790 seal installer. Special Tools DT-23129 Universal Seal Remover DT-47790 Seal Installer GE-6125-1B Slide Hammer GE-8092 Driver Handle For equivalent regional tools: Special Tools .

Callout

Component Name

Preliminary Procedure
Front Wheel Drive Half Shaft Replacement - Right Side (AWD) , or Front Wheel Drive Half Shaft Replacement - Right Side (FWD)

Right Front Wheel Drive Shaft Oil Seal

Procedure

For seal removal use GE-6125-1B slide hammer with DT-23129 universal seal remover.
For seal installation use GE-8092 driver handle with DT-47790 seal installer.

Special Tools

DT-23129 Universal Seal Remover
DT-47790 Seal Installer
GE-6125-1B Slide Hammer
GE-8092 Driver Handle

For equivalent regional tools: Special Tools .
