Installation Procedure
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
-

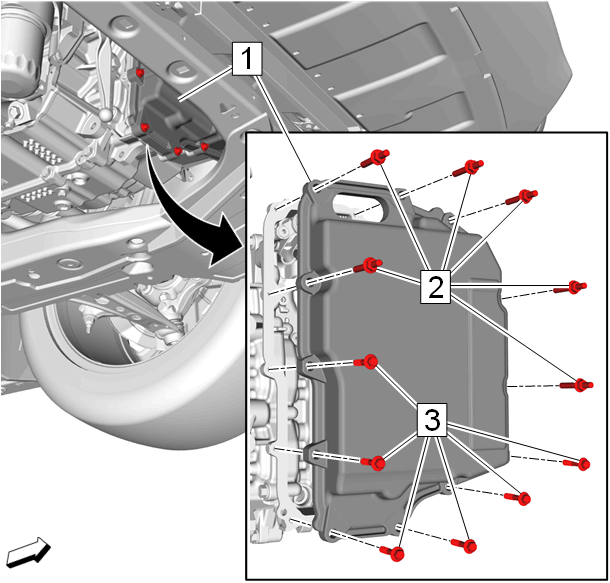

Control Valve Body Cover Gasket - Install NEW
- Control Valve Body Cover (1) - Install
- Control Valve Body Cover Bolt (3) - Install and hand tighten [6x]
- Control Valve Body Cover Stud (2) - Install and hand tighten [6x]
-
Courtesy of GENERAL MOTORS COMPANY

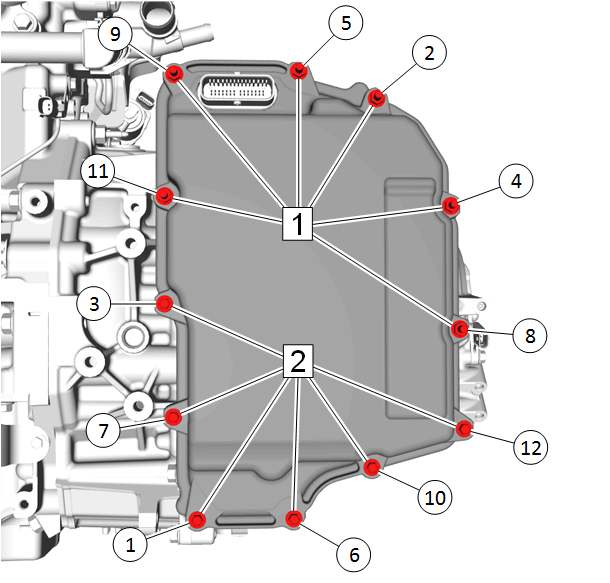

NOTE:Tighten in the sequence shown.
Control Valve Body Cover Stud (1) & Control Valve Body Cover Bolt (2) - Tighten in sequence [12x] 11 N.m (97 lb in)
- Transmission Control Module Bracket - Install - Transmission Control Module Bracket Replacement
- Transmission Fluid Cooler Outlet Pipe @ Transmission - Install - Transmission Fluid Cooler Outlet Pipe Replacement (9T50/9T60)
- Transmission Fluid Cooler Inlet Pipe @ Transmission - Install - Transmission Fluid Cooler Inlet Pipe Replacement (9T50/9T60)

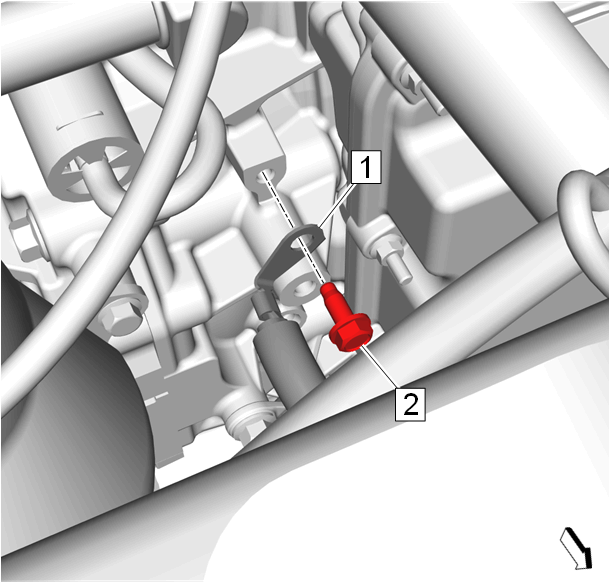

Battery Negative Cable (1) - Reposition
- Install the battery negative cable ground bolt. Battery Negative Cable Replacement (3.6L LGX)

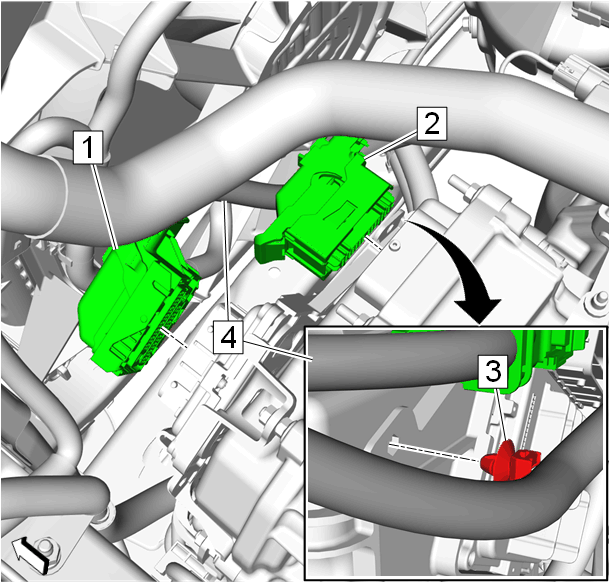

Wiring Harness (4) - Reposition
- Wiring Harness Retainer (3) @ Transmission Control Module Bracket - Install
- Electrical Connector (2) @ Transmission - Connect
- Electrical Connector (1) @ Transmission Control Module - Connect

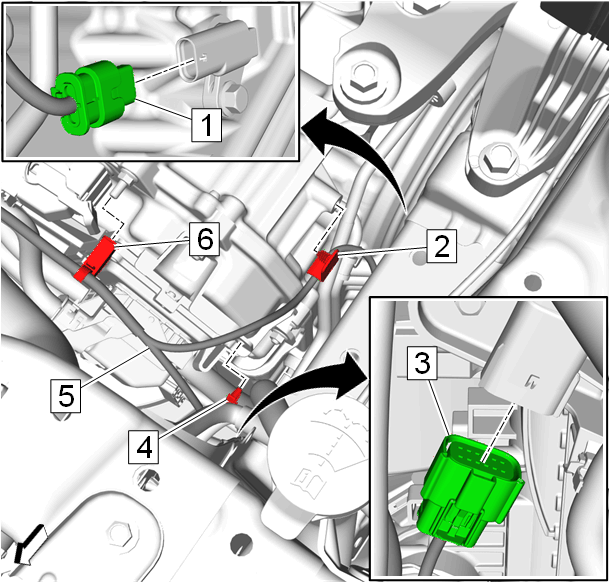

Wiring Harness (5) - Reposition
- Wiring Harness Retainer (6) @ Control Valve Body Cover Stud - Install
- Wiring Harness Retainer (4) @ Transmission Control Module Bracket - Install
- Wiring Harness Retainer (2) @ Transmission Case - Install
- Electrical Connector (3) @ Engine Coolant Fan - Connect
- Input Speed Sensor Electrical Connector (1) - Connect
- Install the air cleaner bracket. Air Cleaner Bracket Replacement
- Transmission Fluid - Fill - Transmission Fluid Drain and Fill
- Check for leaks.
