Water Outlet Installation
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

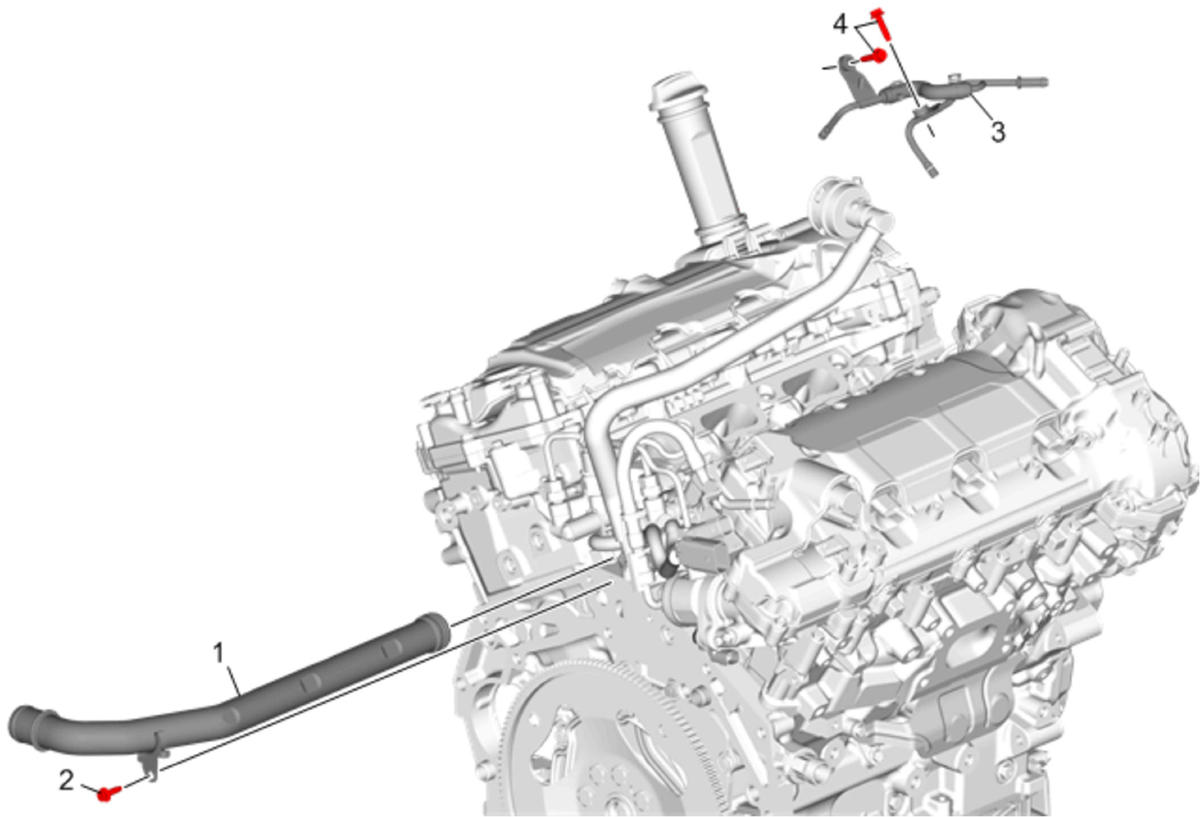

| Callout | Component Name |
|---|---|
| 1 | Water Outlet |
| 2 |
CAUTION:
Water Outlet BoltTighten 10 N.m (89 lb in)Refer to Fastener Caution . |
| 3 | Engine Coolant Air Bleed Pipe |
| 4 | Engine Coolant Air Bleed Pipe Bolt [2x] Tighten 10 N.m (89 lb in) |
