Removal Procedure
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

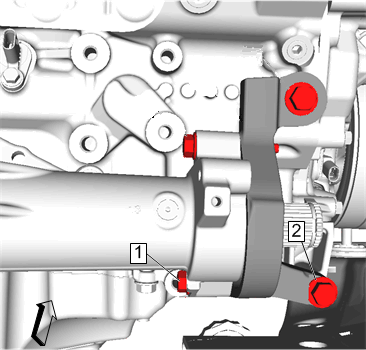

Remove the lower bracket-to-oil pan bolt (2).
- Exhaust Front Pipe - Remove - Exhaust Front Pipe Replacement (LGX AWD)
- Drain the engine oil. Engine Oil and Oil Filter Replacement

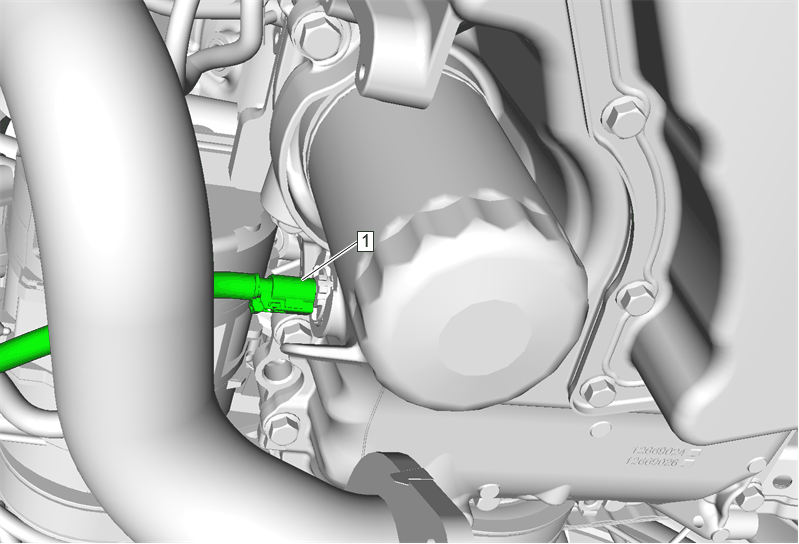

Engine Oil Level Indicator Switch (1) - Disconnect the electrical connector.
Transmission Bolt (2) - Remove

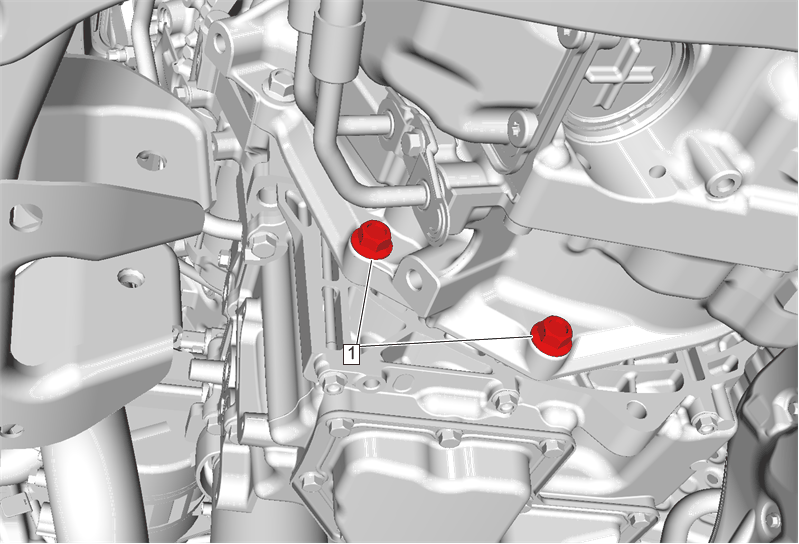

Transmission Bolt (1) - Remove [2x]
Oil Pan Bolt (1-5) [17x] - Remove
- Oil Pan (6) - Remove
- Clean and inspect the oil pan. Oil Pan Cleaning and Inspection
- Disassemble the oil pan as necessary. Oil Pan Disassemble
