Intake Manifold Disassemble
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

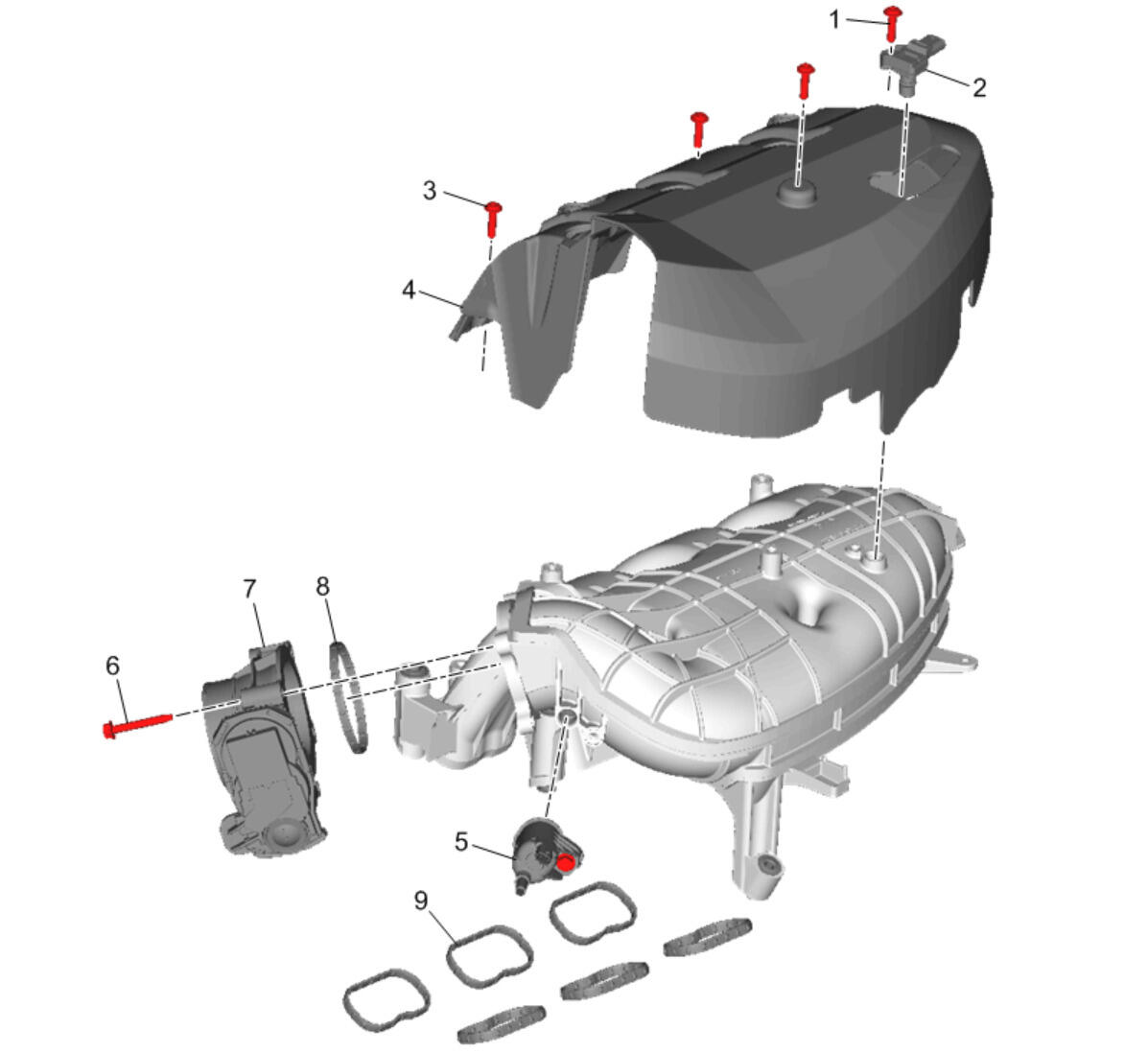

| Callout | Component Name |
|---|---|
| 1 | Manifold Absolute Pressure Sensor Bolt |
| 2 | Manifold Absolute Pressure Sensor |
| 3 | Intake Manifold Insulator Retainer [3x] |
| 4 | Intake Manifold Insulator |
| 5 | Evaporative Emission Canister |
| 6 | Throttle Body Bolt [4x] |
| 7 | Throttle Body |
| 8 | Throttle Body Gasket
NOTE:
Remove and DISCARD the gasket. |
| 9 | Intake Manifold Seal
NOTE:
Remove and DISCARD the seal. |
