Removal Procedure

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement

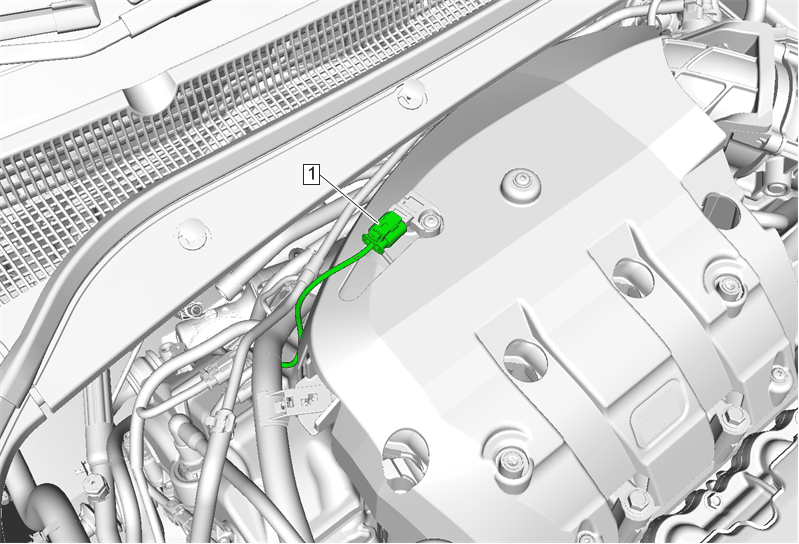

  2. GM4448172Courtesy of GENERAL MOTORS COMPANY

    Harness Connector (1) - Disconnect

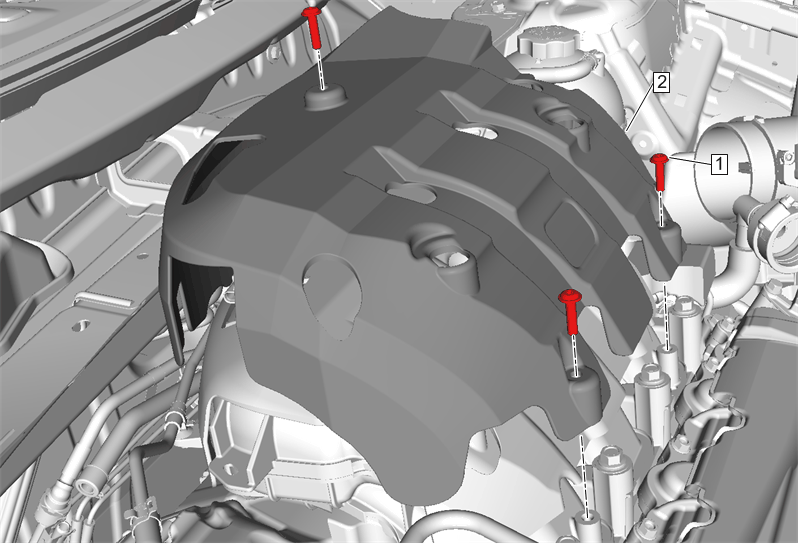

  3. GM4447663Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Fastener (1) - Remove [3x]

  4. Intake Manifold Cover (2) - Remove
