Intake Manifold Assemble

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

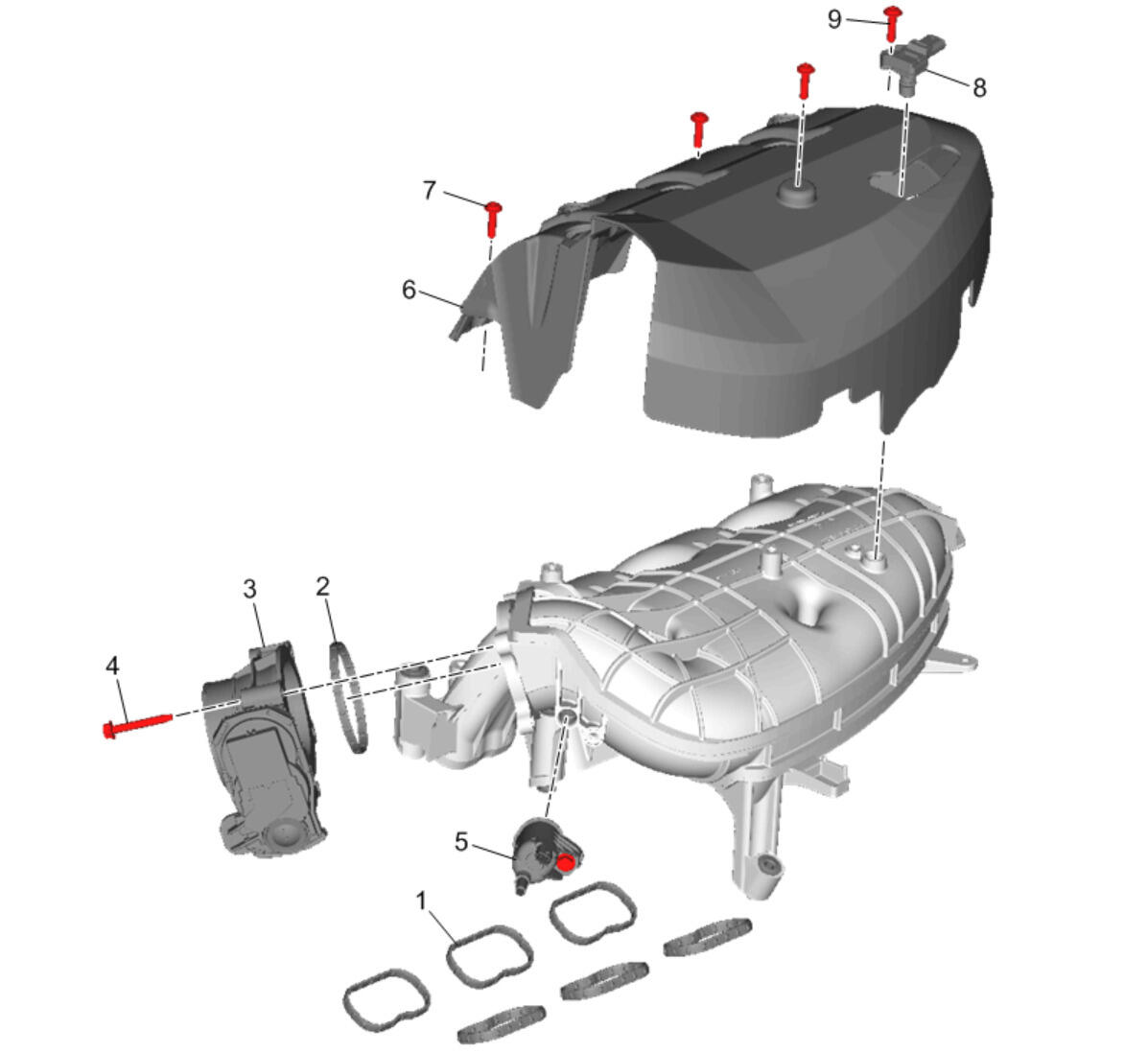

Fig 1: Exploded View Of Intake Manifold Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Intake Manifold Seal NOTE: Install a NEW seal.
2	Throttle Body Gasket NOTE: Install a NEW gasket.
3	Throttle Body
4	Throttle Body Bolt [4x] Tighten 10 N.m (89 lb in)
