Heater Inlet and Outlet Pipe Installation
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

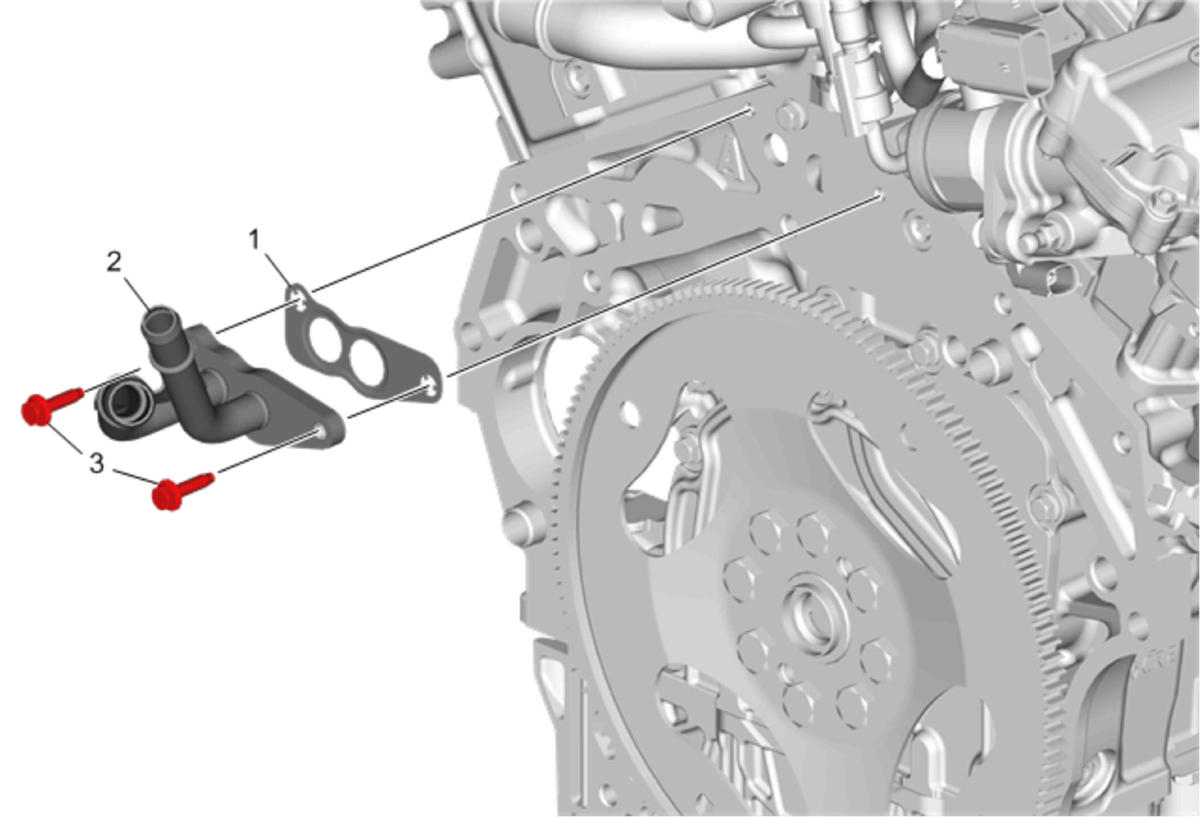

| Callout | Component Name |
|---|---|
| 1 | Heater Inlet and Outlet Pipe Gasket Procedure Install a NEW gasket. |
| 2 | Heater Inlet and Outlet Pipe |
| 3 | Heater Inlet and Outlet Pipe Bolt M6 x 25 [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
