Engine Support Fixture Installation - Engine Mount and Engine Mount Bracket Procedures

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

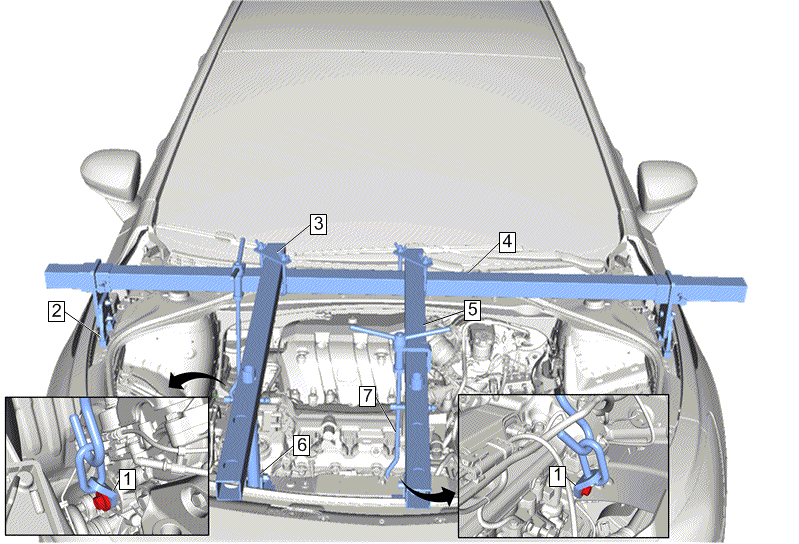

Callout	Component Name
Preliminary Procedures Hood Replacement Front Compartment Front Sight Shield Replacement Air Cleaner Outlet Duct Replacement Special Tools EN-28467-300 Engine Support Fixture Adapters EN-36857 Engine Lift Bracket EN-51007-1 Main Support Beam EN-51007-3 Radiator Support Beam EN-51007-4 Clamp EN-51007-5 Support Leg, Front EN-51007-6 Hook EN-51768 Engine Support Fixture Adapter Bolt - M8 EN-52059 Engine Support Fixture Adapter Bolt - M10 Equivalent regional tools: Special Tools
1	EN-36857 Engine Lift Bracket [2x] Procedure CAUTION: Refer to Fastener Caution . Use EN-52059 Engine Support Fixture Adapter Bolt - M10 to install a EN-36857 bracket to the right and left cylinder head in the location shown. Tighten the bolt to 65 N.m (48 lb ft).
2	EN-28467-300 Engine Support Fixture Adapters Procedure Install EN-28467-300 Engine Support Fixture Adapters to frame as shown.
3	EN-51007-4 Clamp
4	EN-51007-1 Main Support Beam
5	EN-51007-3 Radiator Support Beam
6	EN-51007-6 Hook Procedure Hand-tighten the lift hook wing nuts securely to remove all slack from the engine support fixture assembly.
