Engine Coolant Temperature Sensor Installation

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

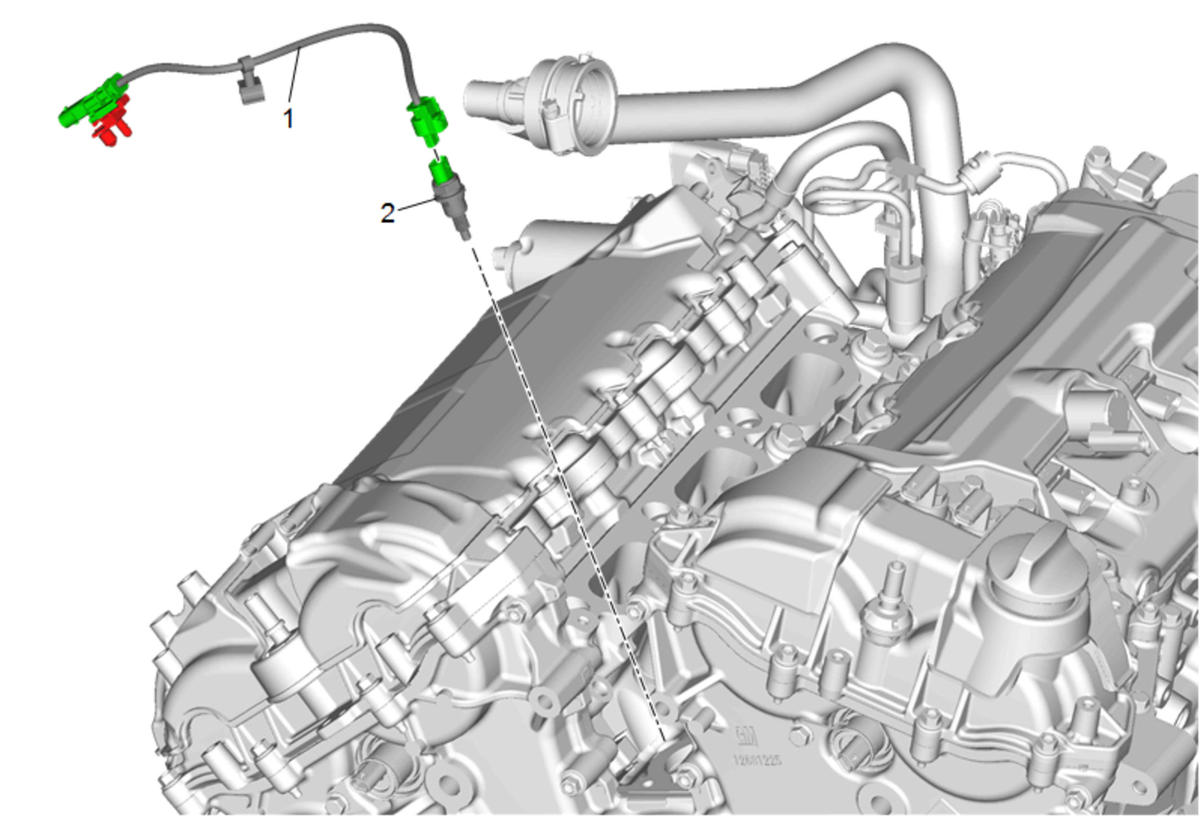

GM5132114Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor Installation

Callout Component Name
1 Engine Coolant Temperature Sensor
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Engine Coolant Temperature Sensor Wire
Procedure
Connect wire to camshaft cover.
