Installation Procedure

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the camshaft timing chain components. Camshaft Timing Chain Components Installation

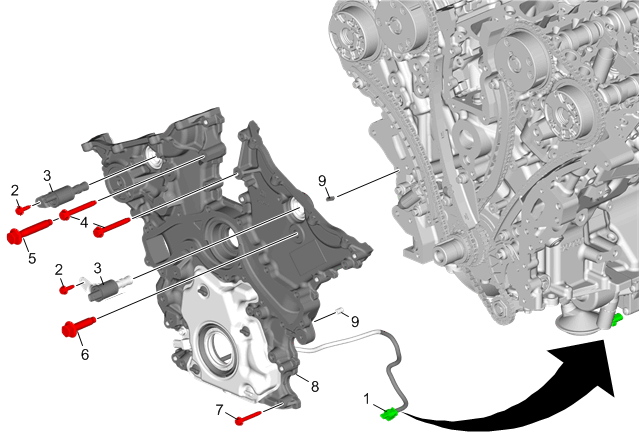

  2. Fig 1: Identifying Engine Front Cover And Components
    GM4295666Courtesy of GENERAL MOTORS COMPANY

    Engine Front Cover (8) - Install - Engine Front Cover Replacement
