Removal Procedure
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
- Engine Mount-Right Side - Remove - Engine Mount Replacement - Right Side
- Drive Belt - Remove - Drive Belt Replacement
- Starter - Remove - Starter Replacement (3.6L LGX)
Install the EN-46106 tool (1) through the starter mounting hole.
- Using the engine support fixture lower the engine enough to gain access to the crankshaft balancer.
Crankshaft Balancer Bolt (1) - Remove and DISCARD

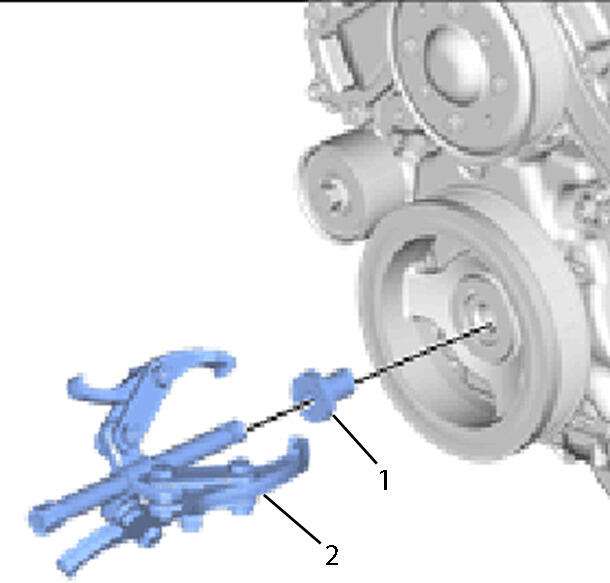

Install the EN-38416-2 button (1) in the nose of the crankshaft.
- Install the EN-41816 remover (2) to remove the crankshaft balancer.
- Tighten the center bolt of the EN-41816 remover to pull the crankshaft balancer off of the crankshaft.
- Remove the EN-41816 remover from the crankshaft balancer.
