Automatic Transmission Flex Plate Replacement
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

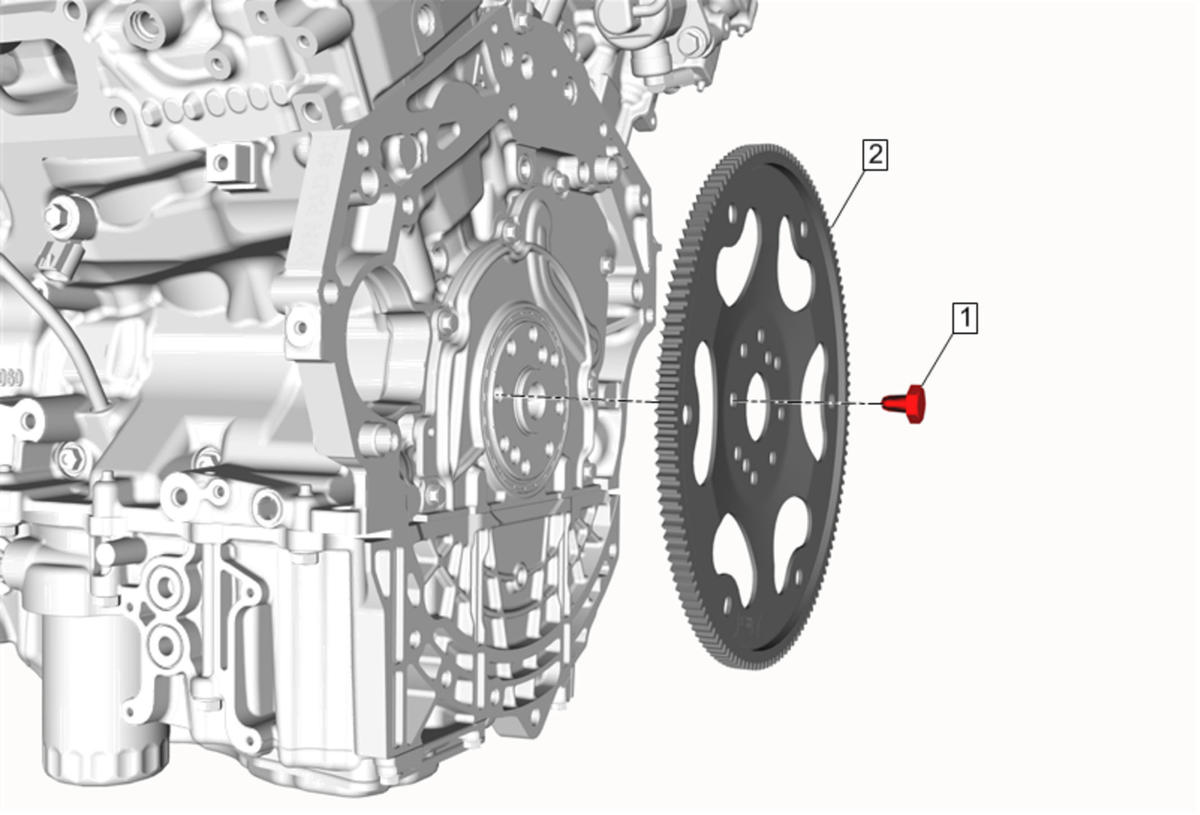

| Callout | Component Name |
|---|---|
| Preliminary Procedure Transmission - Remove - Transmission Replacement (3.6L LGX) |
|
| 1 | Automatic Transmission Flex Plate Bolt [8x]
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
NOTE:
NEW bolts must be used whenever removing the automatic transmission flex plate. Tighten
Special Tools
Equivalent regional tools: Special Tools . |
| 2 | Automatic Transmission Flex Plate Procedure
|
