Fuel Tank Pressure Sensor Replacement (FWD)

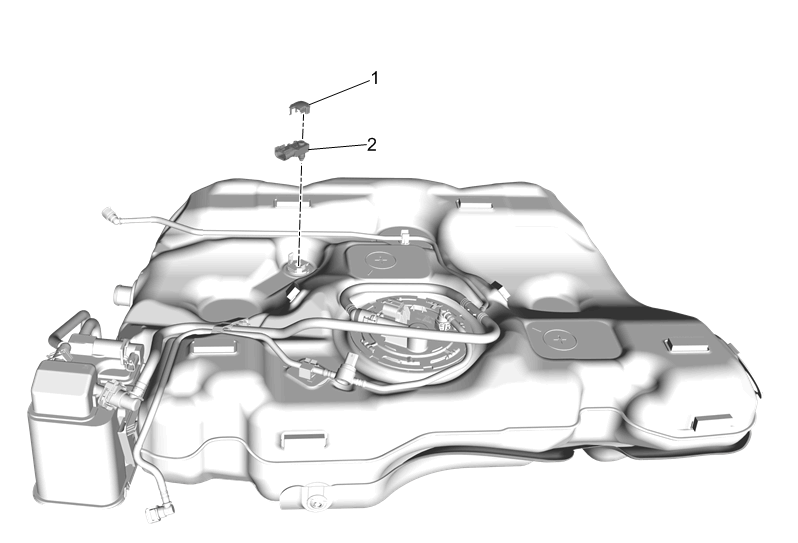

GM5129897Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement (FWD without Scrubber) , or Fuel Tank Replacement (FWD with Scrubber)
1 Fuel Tank Pressure Sensor Cover
2 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
