Heater Inlet And Outlet Pipe Replacement

Courtesy of GENERAL MOTORS COMPANY

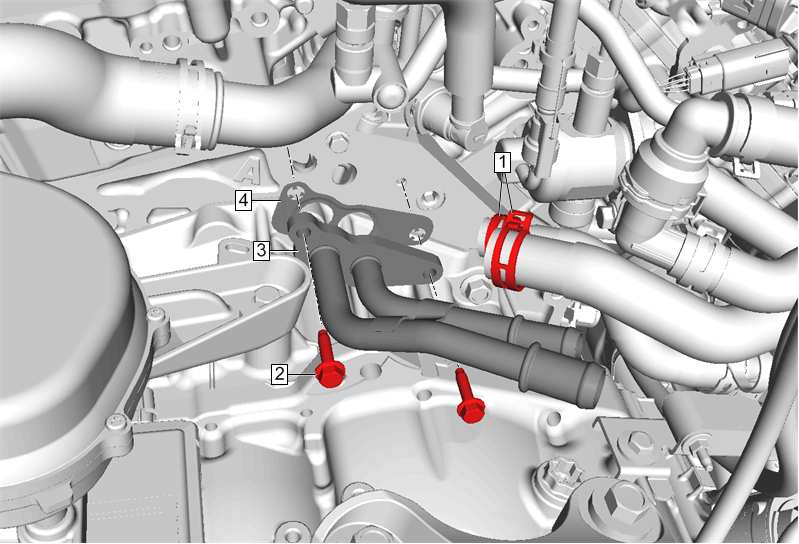

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling Air Cleaner Assembly Replacement
1	Heater Hose Clamp [2x] Hose Clamp Replacement Guidelines - Spring Type
2	Heater Inlet and Outlet Pipe Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Heater Inlet and Outlet Pipe
4	Heater Inlet and Outlet Pipe Gasket Procedure Install a NEW gasket.
