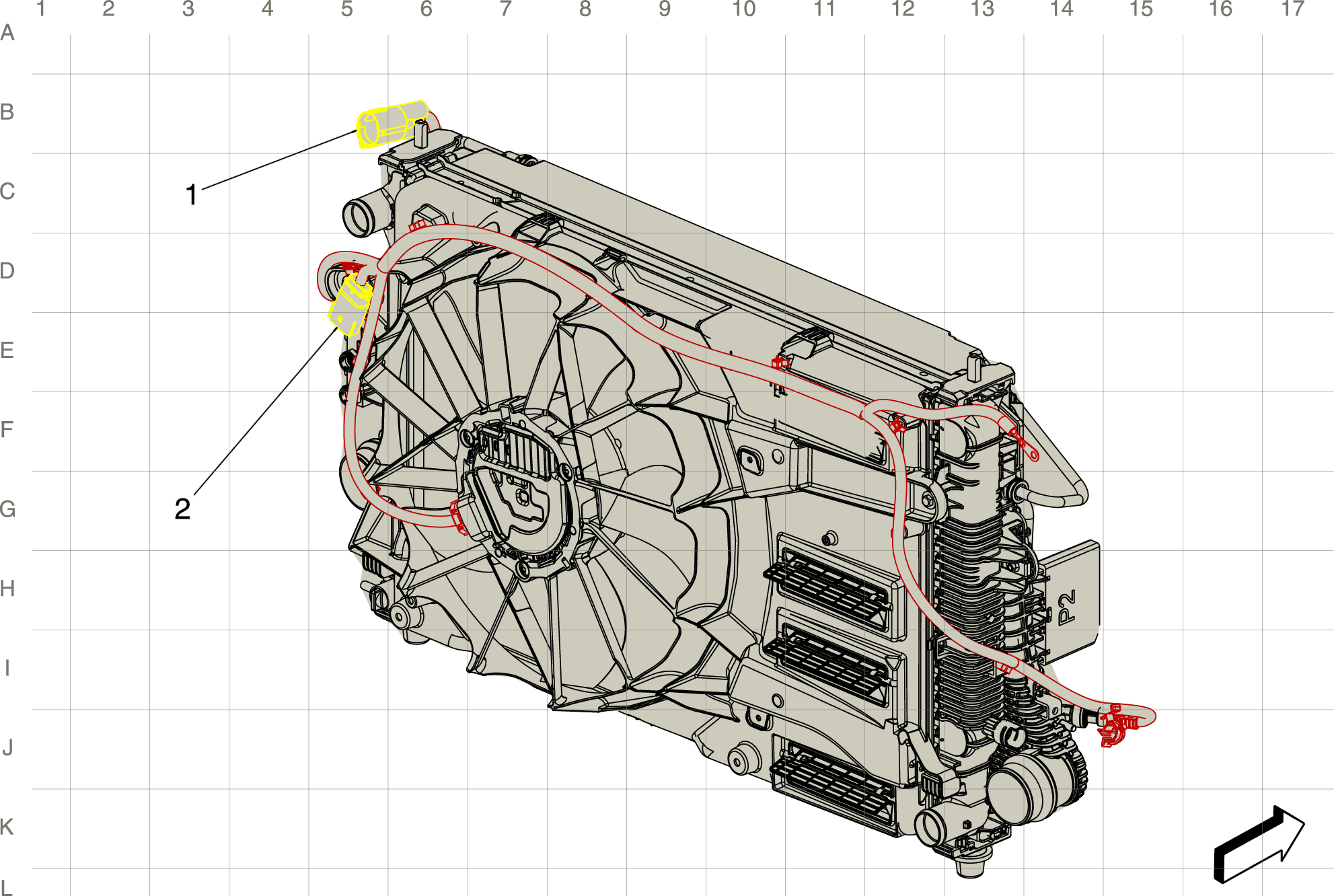

Single Cooling Fan Harness Routing (LTG)

GM4623092Courtesy of GENERAL MOTORS COMPANY
Single Cooling Fan Harness Routing (LTG)

Harness Name Callout
X118 Body Harness to Cooling Fan Harness 1
X117 Engine Harness to Cooling Fan Harness X117 Engine Harness to Cooling Fan Harness 2
