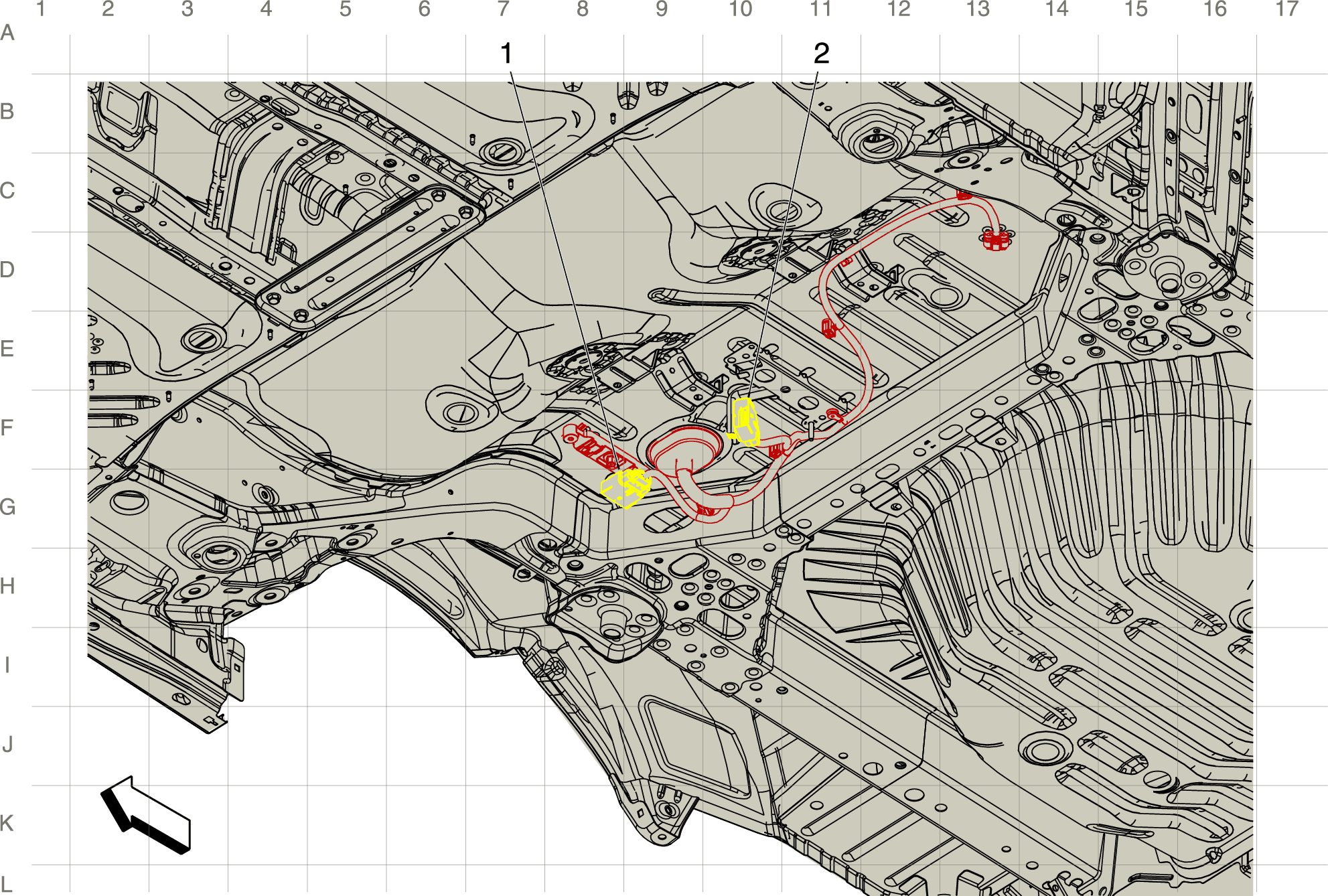

Rear Underbody Harness Routing View
Rear Underbody Harness Routing View
| Harness Name | Callout |
|---|---|
| X408 Body Harness to Rear Axle Harness X408 Body Harness to Chassis Harness (GNQ) , or X408 Chassis Harness to Body Harness (GNC) | 1 |
| X350 Fuel Tank Harness to Body Harness X350 Fuel Tank Harness to Body Harness | 2 |
