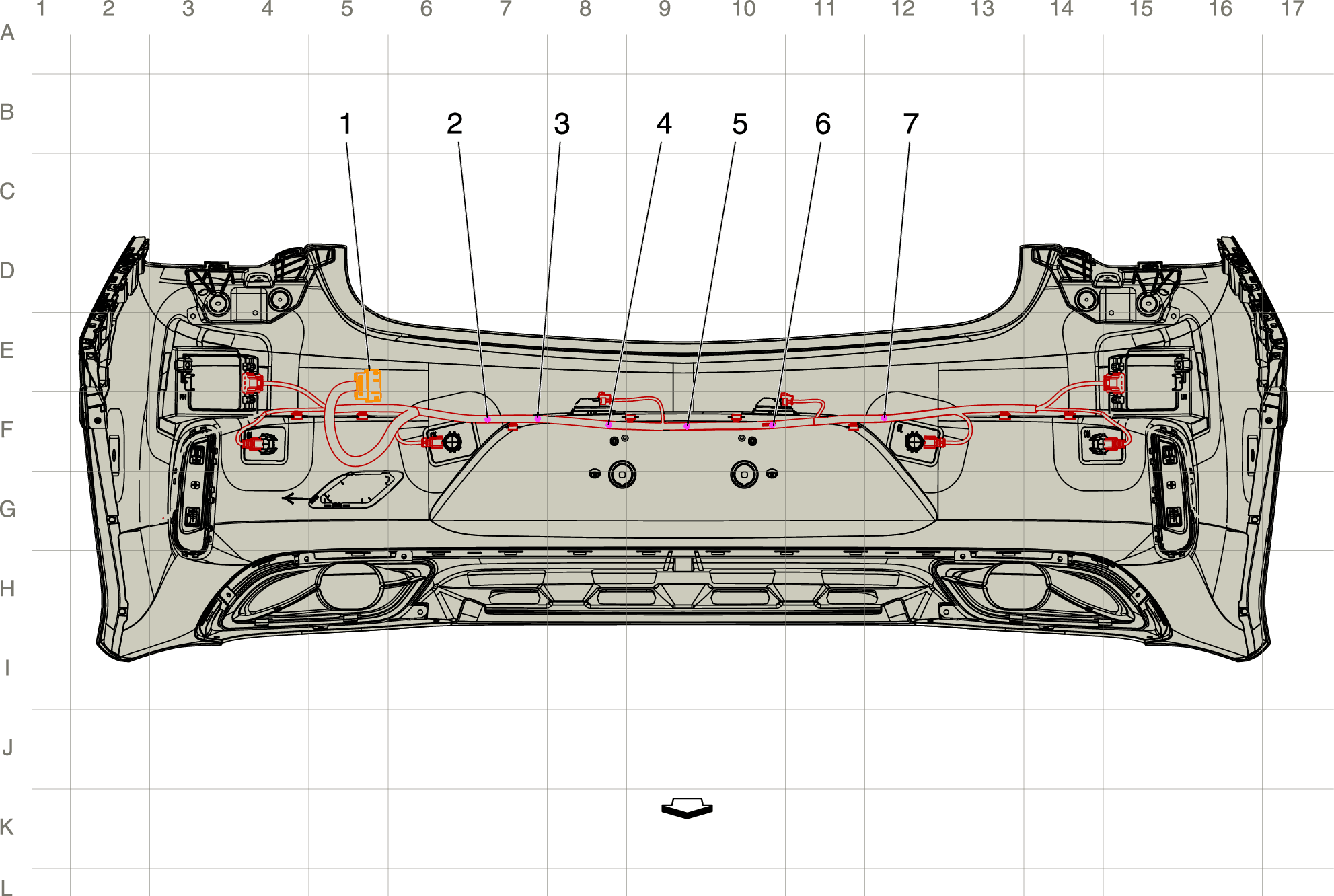

Rear Fascia Harness Routing (HATCHBACK)
Rear Fascia Harness Routing (HATCHBACK)
| Harness Name | Callout |
|---|---|
| X404 Rear Fascia Harness to Body Harness X404 Rear Fascia Harness to Body Harness | 1 |
| J418 Rear Fascia Harness | 2 |
| J419 Rear Fascia Harness (UKG) | 3 |
| J417 Rear Fascia Harness (UKC) | 4 |
| J400 Body Harness | 5 |
| J401 Body Harness | 6 |
| J423 Rear Fascia Harness (TC2+UKC) | 7 |
