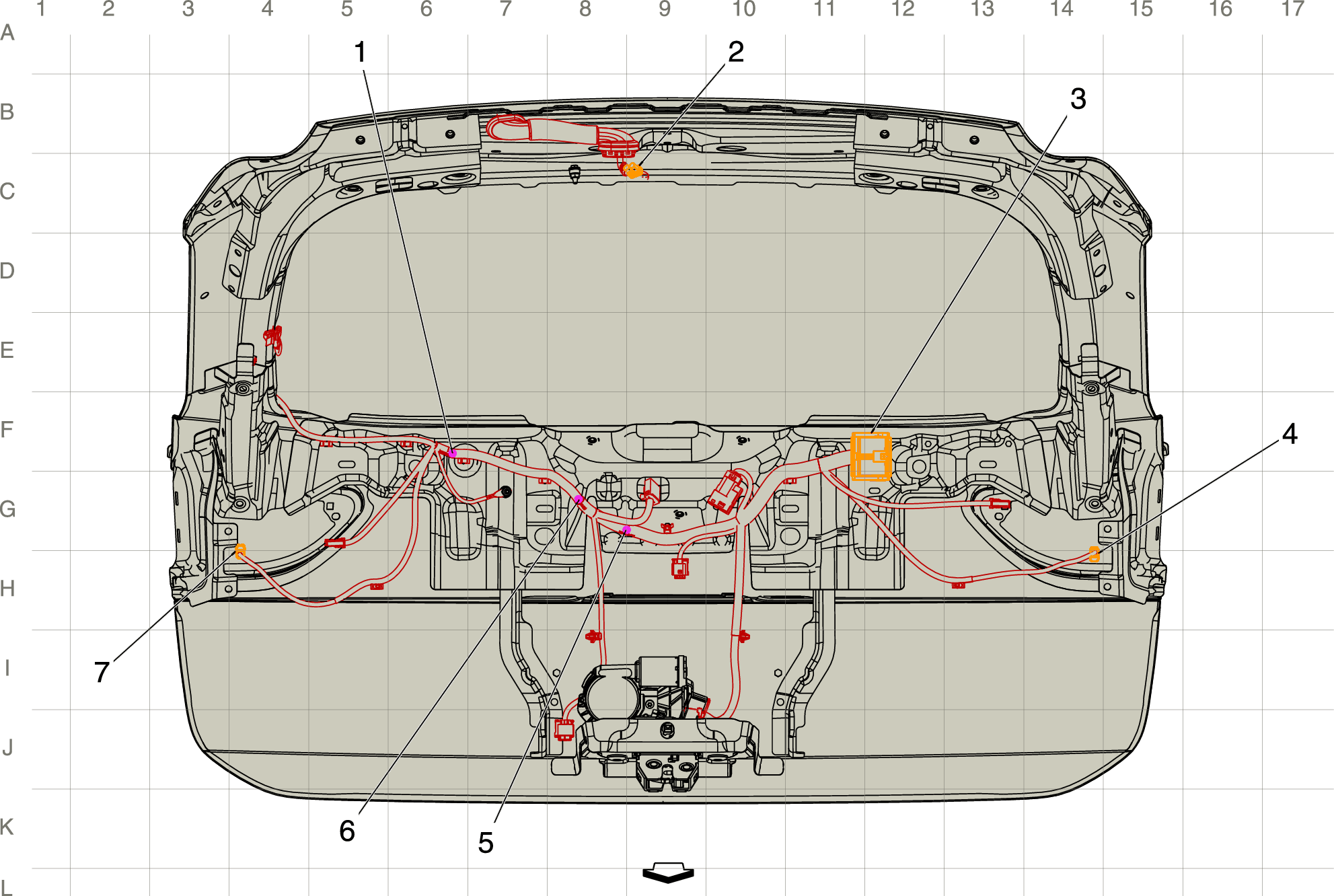

Liftgate Harness Routing (WAGON)
Liftgate Harness Routing (WAGON)
| Harness Name | Callout |
|---|---|
| J900 Left Liftgate Tail Lamp Harness | 1 |
| X905 Body Harness to Radio Antenna Harness X905 Body Harness to Radio Antenna Harness (WAGON) | 2 |
| X901 Liftgate Extension Harness to Liftgate Harness X901 Liftgate Extension Harness to Liftgate Harness | 3 |
| X910 Liftgate Harness to Left Liftgate Tail Lamp Harness X910 Liftgate Harness to Left Liftgate Tail Lamp Harness | 4 |
| J902 Liftgate Harness | 5 |
| J901 Right Liftgate Tail Lamp Harness | 6 |
| X920 Liftgate Harness to Right Liftgate Tail Lamp Harness X920 Liftgate Harness to Right Liftgate Tail Lamp Harness | 7 |
