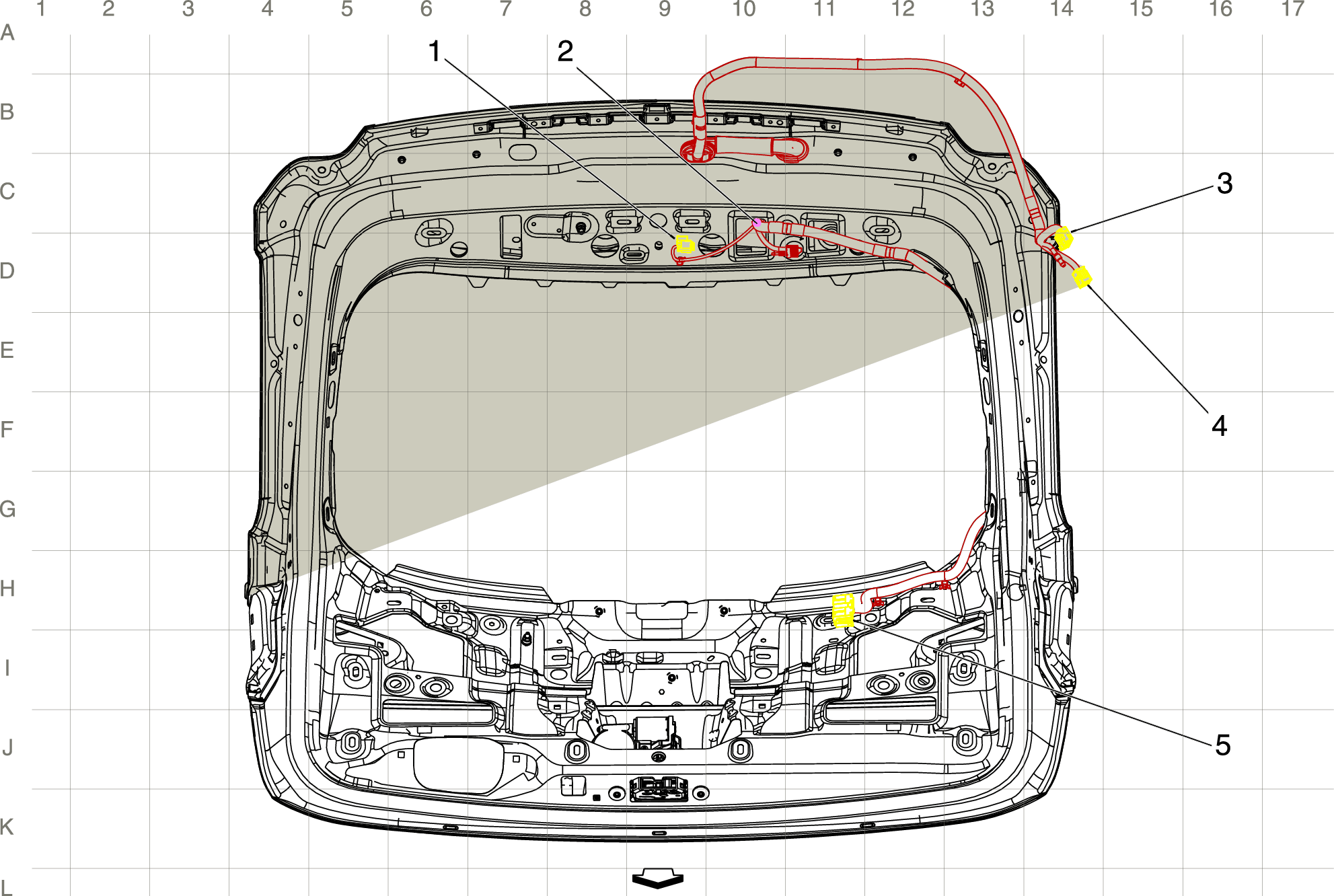

Liftgate Extension Harness Routing (WAGON)
Liftgate Extension Harness Routing (WAGON)
| Harness Name | Callout |
|---|---|
| X904 Center High Mount Stop Lamp Harness to Liftgate Extension Harness (WAGON) X904 Center High Mount Stop Lamp Harness to Liftgate Extension Harness | 1 |
| J902 Liftgate Harness | 2 |
| X900 Liftgate Extension Harness to Body Harness X900 Liftgate Extension Harness to Body Harness | 3 |
| X902 Liftgate Extension Harness to Body Harness (TC2) X902 Liftgate Extension Harness to Body Harness | 4 |
| X901 Liftgate Extension Harness to Liftgate Harness X901 Liftgate Extension Harness to Liftgate Harness | 5 |
