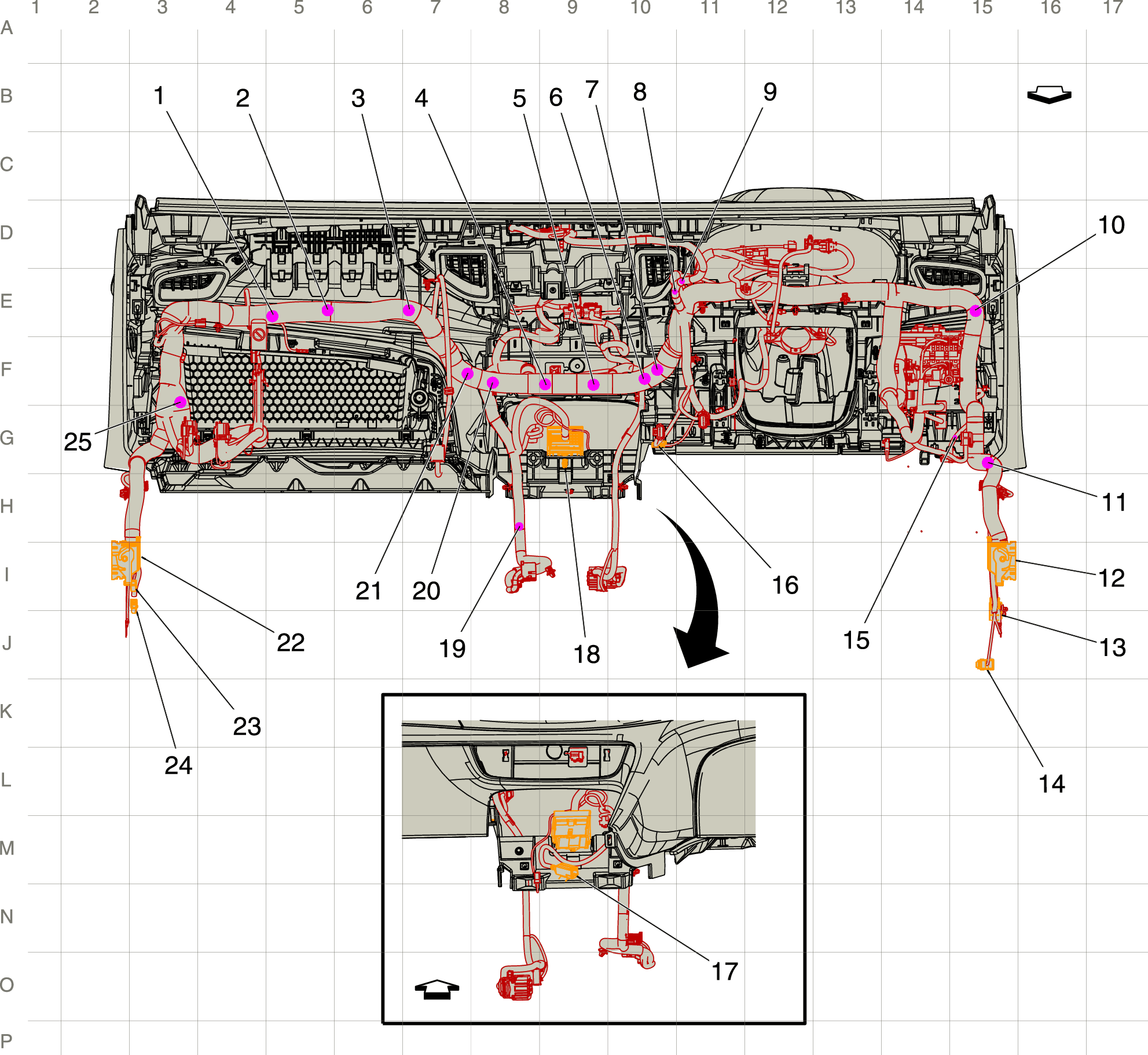

Instrument Panel Harness Routing
Instrument Panel Harness Routing
| Harness Name | Callout |
|---|---|
| X206 Instrument Panel Harness to Passenger Instrument Panel Air Bag Harness X206 Instrument Panel Harness to Passenger Instrument Panel Air Bag Harness | 1 |
| J211 Instrument Panel Harness | 2 |
| J227 Instrument Panel Harness | 3 |
| J226 Instrument Panel Harness | 4 |
| J210 Instrument Panel Harness | 5 |
| J282 Instrument Panel Harness | 6 |
| J281 Instrument Panel Harness | 7 |
| J251 Instrument Panel Harness (U65/UQ3) | 8 |
| J250 Instrument Panel Harness (U65/UQ3) | 9 |
| J216 Instrument Panel Harness (UV6) | 10 |
| J225 Instrument Panel Harness | 11 |
| X210 Instrument Panel Harness to Body Harness X210 Instrument Panel Harness to Body Harness | 12 |
| X211 Body Harness to Instrument Panel Harness X211 Body Harness to Instrument Panel Harness (LGX) | 13 |
| X209 Instrument Panel Harness to Body Harness X209 Instrument Panel Harness to Body Harness | 14 |
| J250 Instrument Panel Harness (U65/UQ3) | 15 |
| X212 | 16 |
| X301 Instrument Panel Harness to Floor Console Harness (MCY/MCR) X301 Instrument Panel Harness to Floor Console Harness | 17 |
| X300 Floor Console Harness to Instrument Panel Harness X300 Floor Console Harness to Instrument Panel Harness | 18 |
| J214 Instrument Panel Harness | 19 |
| J223 Instrument Panel Harness | 20 |
| J218 Instrument Panel Harness | 21 |
| X220 Instrument Panel Harness to Body Harness X220 Instrument Panel Harness to Body Harness | 22 |
| X213 Body Harness to Instrument Panel Harness X213 Body Harness to Instrument Panel Harness | 23 |
| X214 | 24 |
| J232 Instrument Panel Harness (C93) | 25 |
