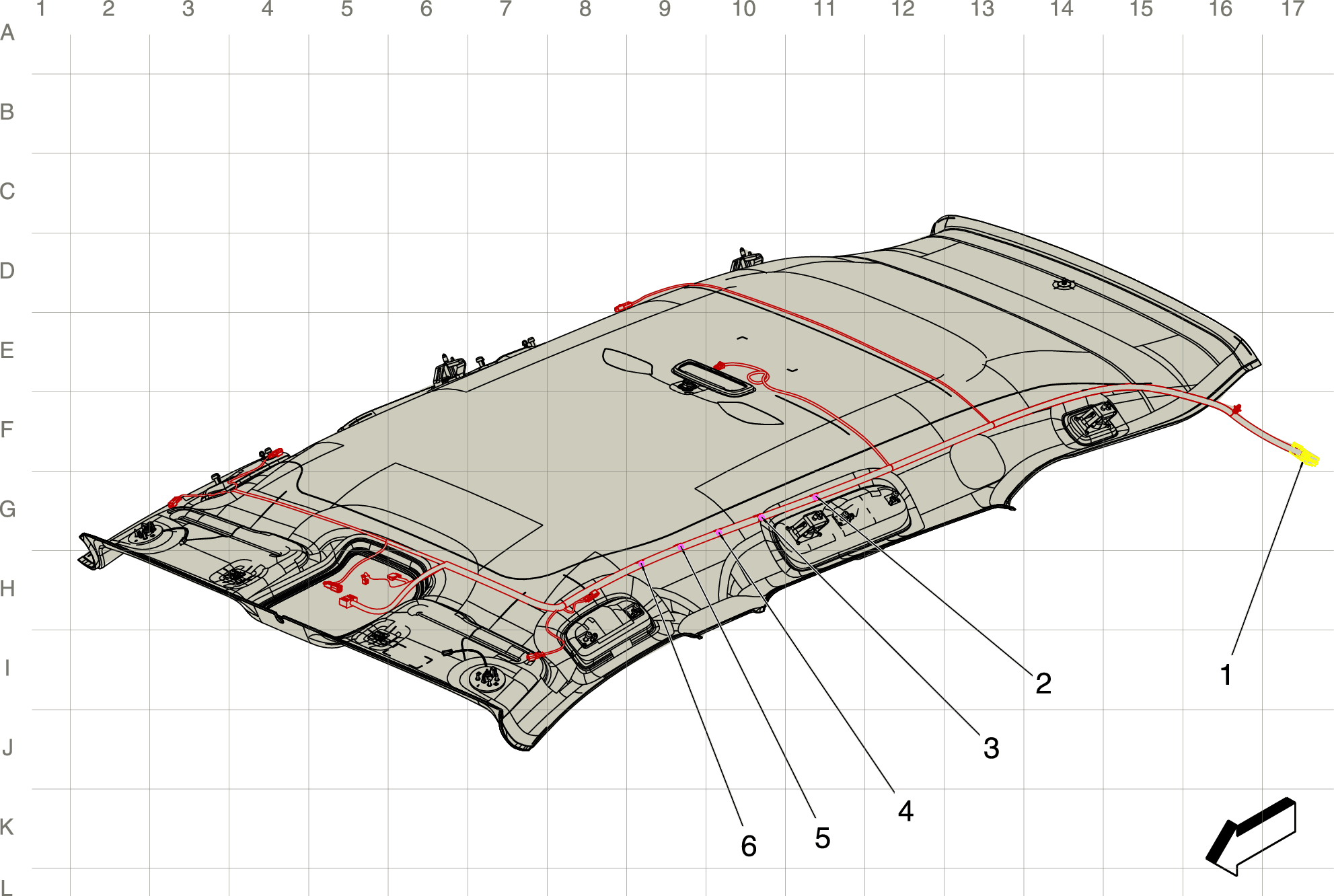

Headliner Harness Routing (WAGON-C3U)
Headliner Harness Routing (WAGON-C3U)
| Harness Name | Callout |
|---|---|
| X400 Headliner Harness to Body Harness X400 Headliner Harness to Body Harness | 1 |
| J312 Headliner Harness | 2 |
| J313 Headliner Harness (UTR) | 3 |
| J314 Headliner Harness | 4 |
| J323 Headliner Harness | 5 |
| J315 Headliner Harness | 6 |
