Front Fascia Harness Routing

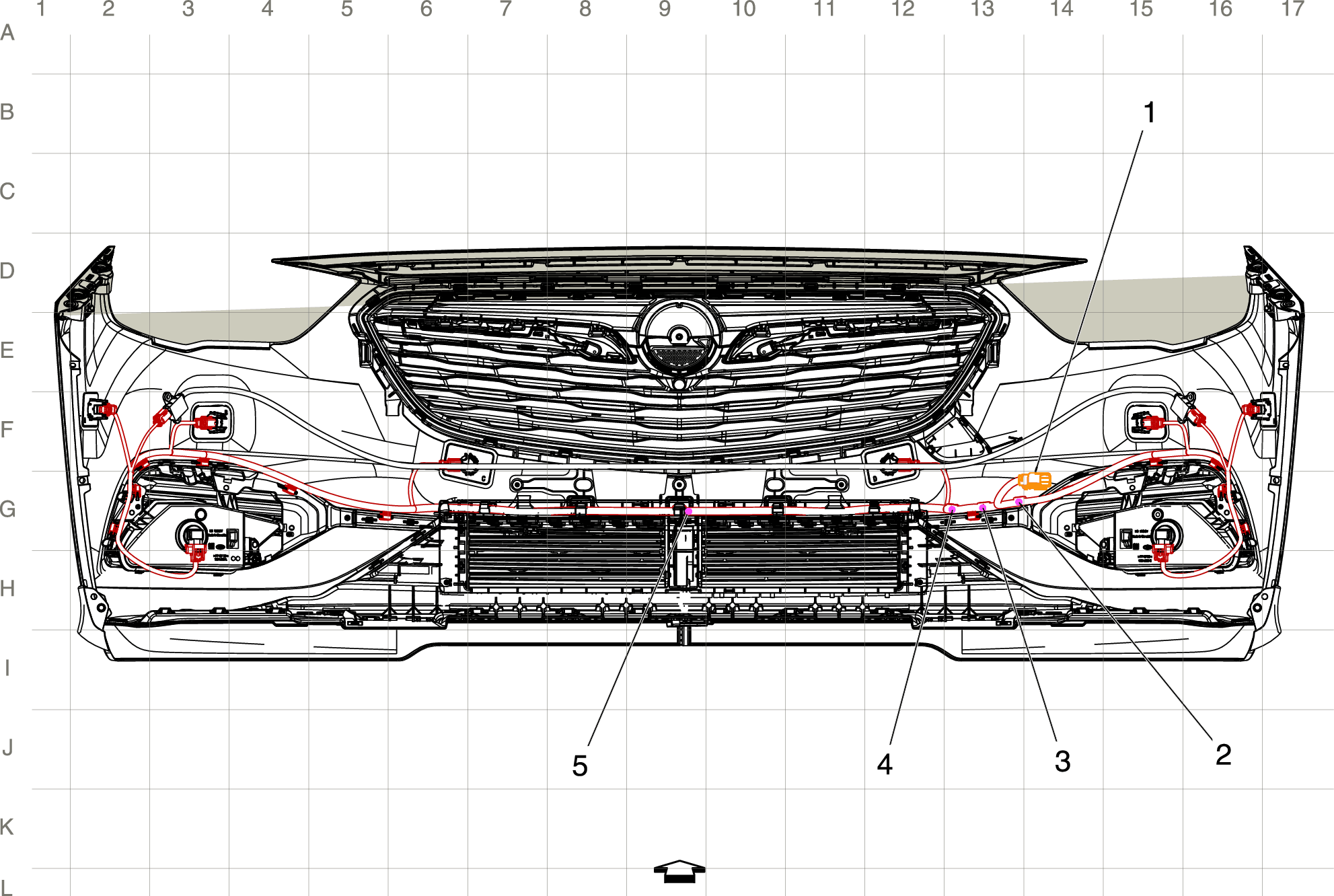

GM4822459Courtesy of GENERAL MOTORS COMPANY
Front Fascia Harness Routing

Harness Name Callout
X116 Front Fascia Harness to Body Harness (UD5/UD7) X116 Front Fascia Harness to Body Harness (UD5/UD7) 1
J143 Front Bumper Harness 2
J142 Front Fascia Harness (T3U) 3
J137 Front Bumper Harness (UD5/UFQ) 4
J136 Front Bumper Harness (UD5/UFQ) 5
