Front Door Trim Harnesses
Front Door Trim Harnesses

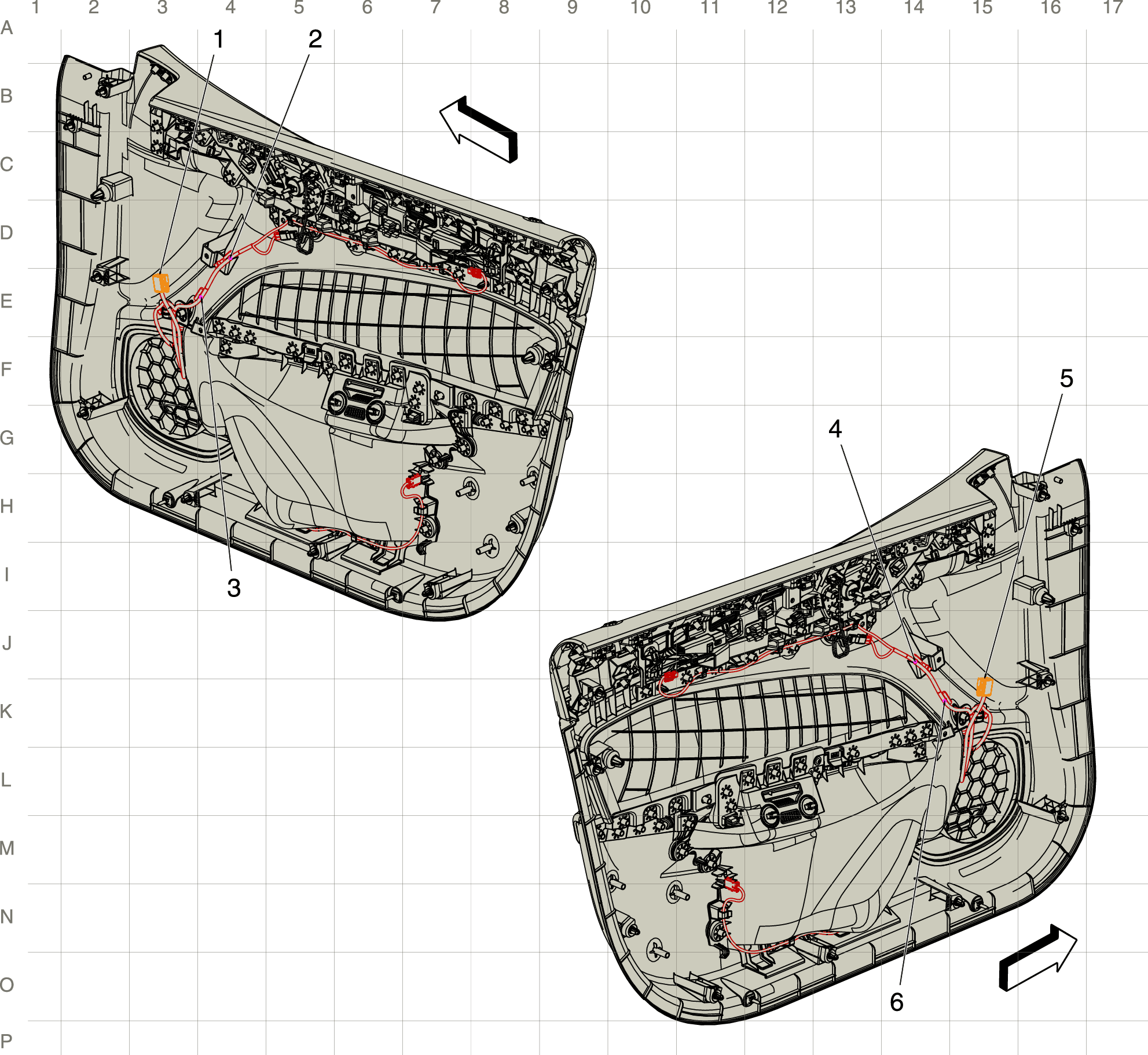

| Harness Name | Callout |
|---|---|
| X501 Driver Door Trim Harness to Driver Door Harness X501 Door Lock Harness to Door Harness | 1 |
| J501 Driver Door Trim Harness (C93/TC2) | 2 |
| J502 Driver Door Trim Harness (C93) | 3 |
| J601 Passenger Door Harness | 4 |
| X601 Passenger Door Trim Harness to Passenger Door Harness X601 Passenger Door Trim Harness to Passenger Door Harness (C93) | 5 |
| J602 Passenger Door Harness | 6 |
