Floor Console Harness Routing

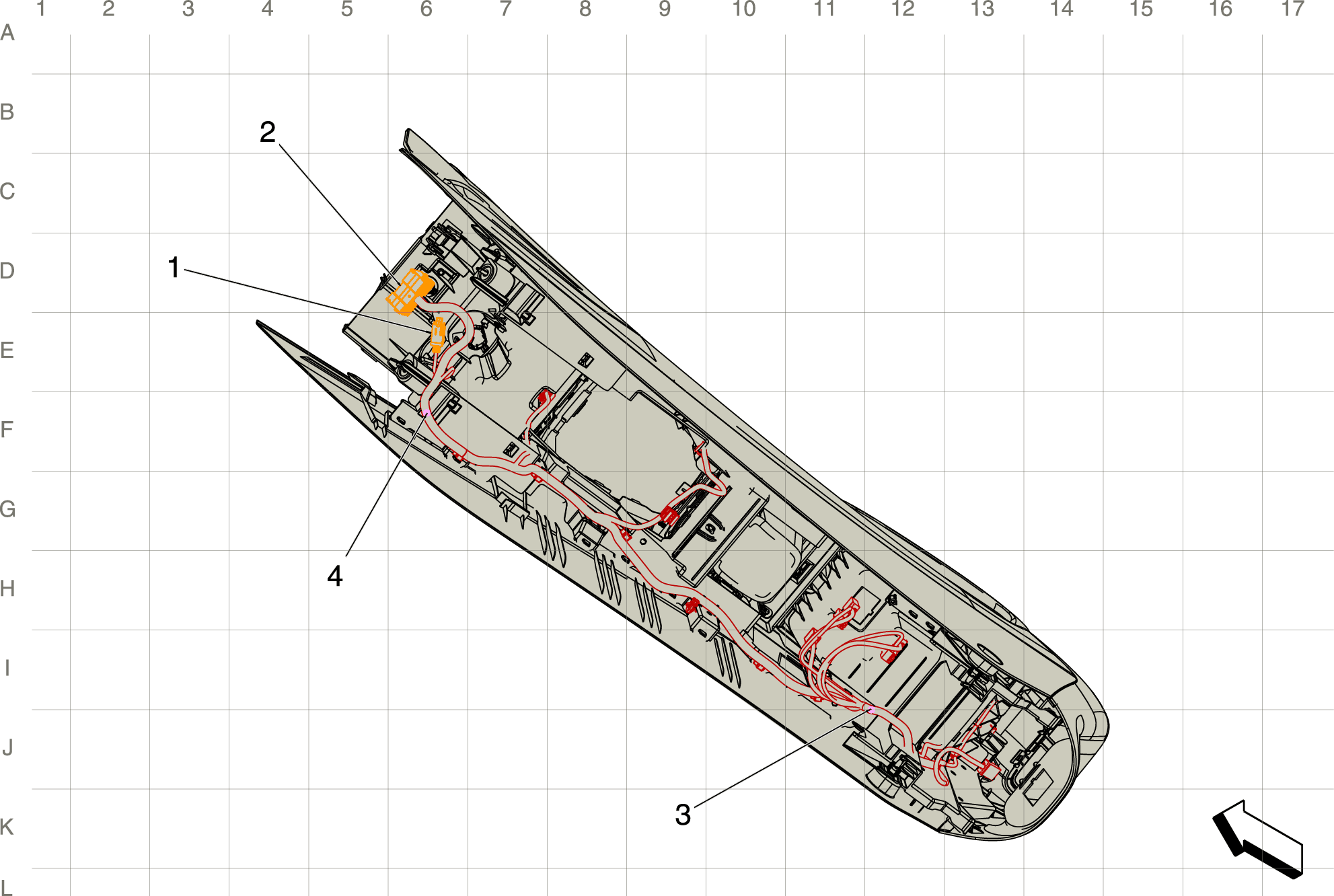

GM4822447Courtesy of GENERAL MOTORS COMPANY
Floor Console Harness Routing

Harness Name Callout
X301 Instrument Panel Harness to Floor Console Harness (MCY/MCR) X301 Instrument Panel Harness to Floor Console Harness 1
X300 Floor Console Harness to Instrument Panel Harness X300 Floor Console Harness to Instrument Panel Harness 2
J376 Floor Console Harness (KA6) 3
J317 Floor Console Harness 4
