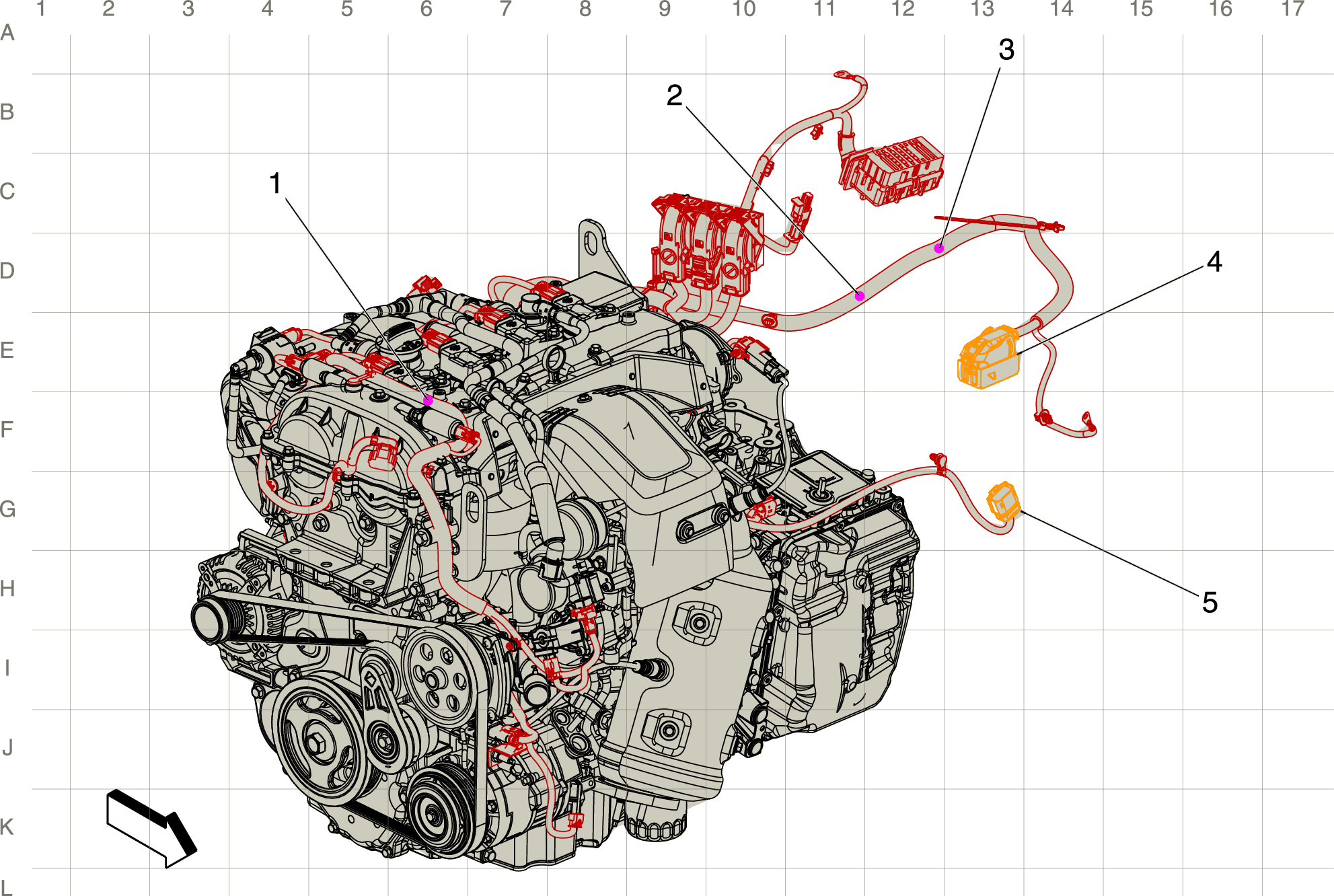

Engine Harness Routing - Right Front (LTG)
Engine Harness Routing - Right Front (LTG)
| Harness Name | Callout |
|---|---|
| J115 Engine Harness | 1 |
| J170 Engine Harness (LTG) | 2 |
| J109 Engine Harness | 3 |
| X115 Engine Harness to Body Harness X115 Engine Harness to Body Harness | 4 |
| X117 Engine Harness to Cooling Fan Harness X117 Engine Harness to Cooling Fan Harness | 5 |
