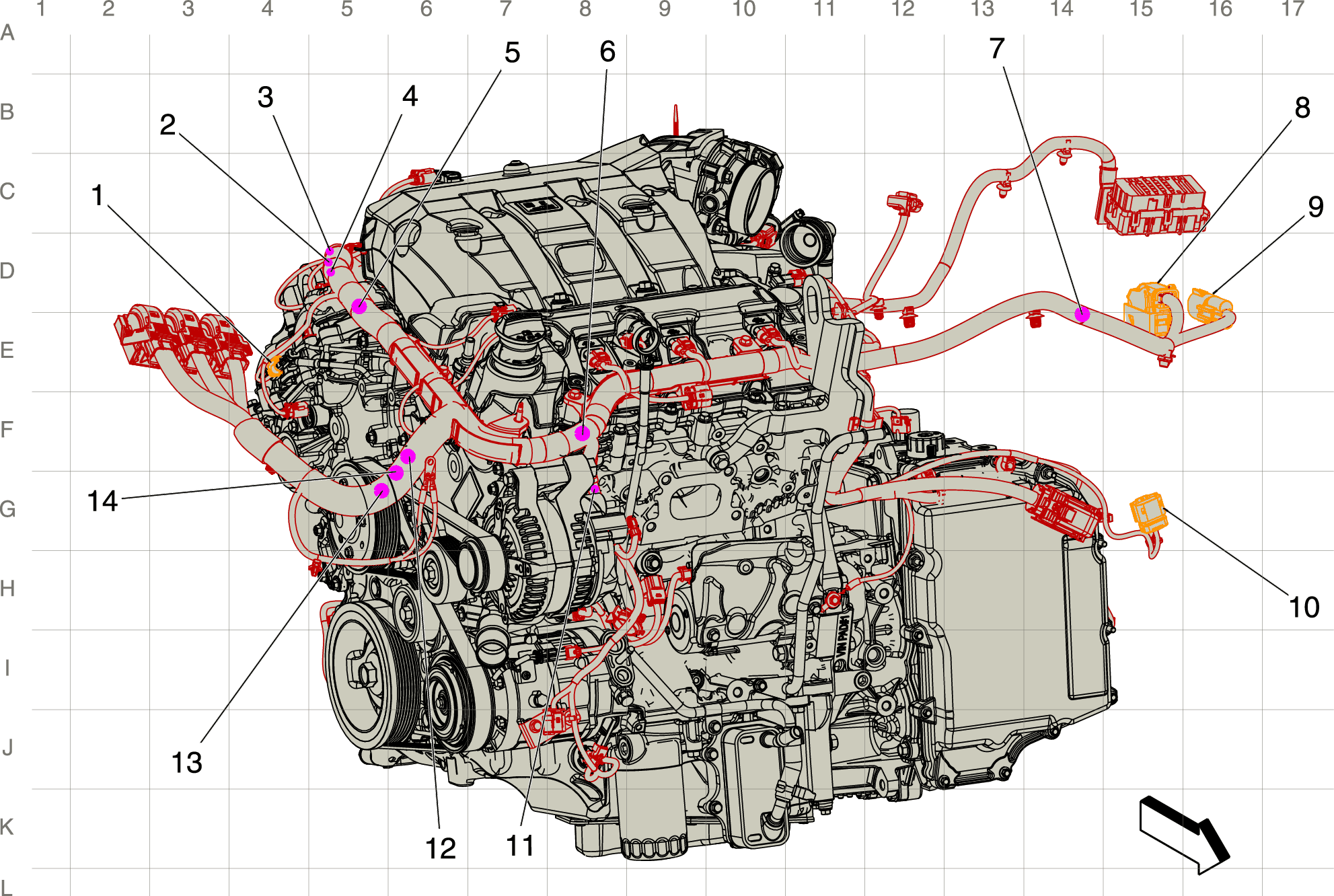

Engine Harness Routing - Right Front (LGX)
Engine Harness Routing - Right Front (LGX)
| Harness Name | Callout |
|---|---|
| X107 Engine Harness to Engine Coolant Temperature Sensor Jumper Harness (LGX) X107 Engine Harness to Engine Coolant Temperature Sensor Jumper Harness | 1 |
| J116 Engine Harness | 2 |
| J117 Engine Harness | 3 |
| J160 Engine Harness (LGX) | 4 |
| J120 Engine Harness | 5 |
| J146 Engine Harness (LGX) | 6 |
| J112 Engine Harness | 7 |
| X115 Engine Harness to Body Harness X115 Engine Harness to Body Harness | 8 |
| X183 Body Harness to Engine Harness (LGX) X183 Body Harness to Engine Harness | 9 |
| X117 Engine Harness to Cooling Fan Harness X117 Engine Harness to Cooling Fan Harness | 10 |
| J165 Engine Harness (LGX) | 11 |
| J147 Engine Harness (LGX) | 12 |
| J341 Engine Harness | 13 |
| J133 Engine Harness (LGX) | 14 |
