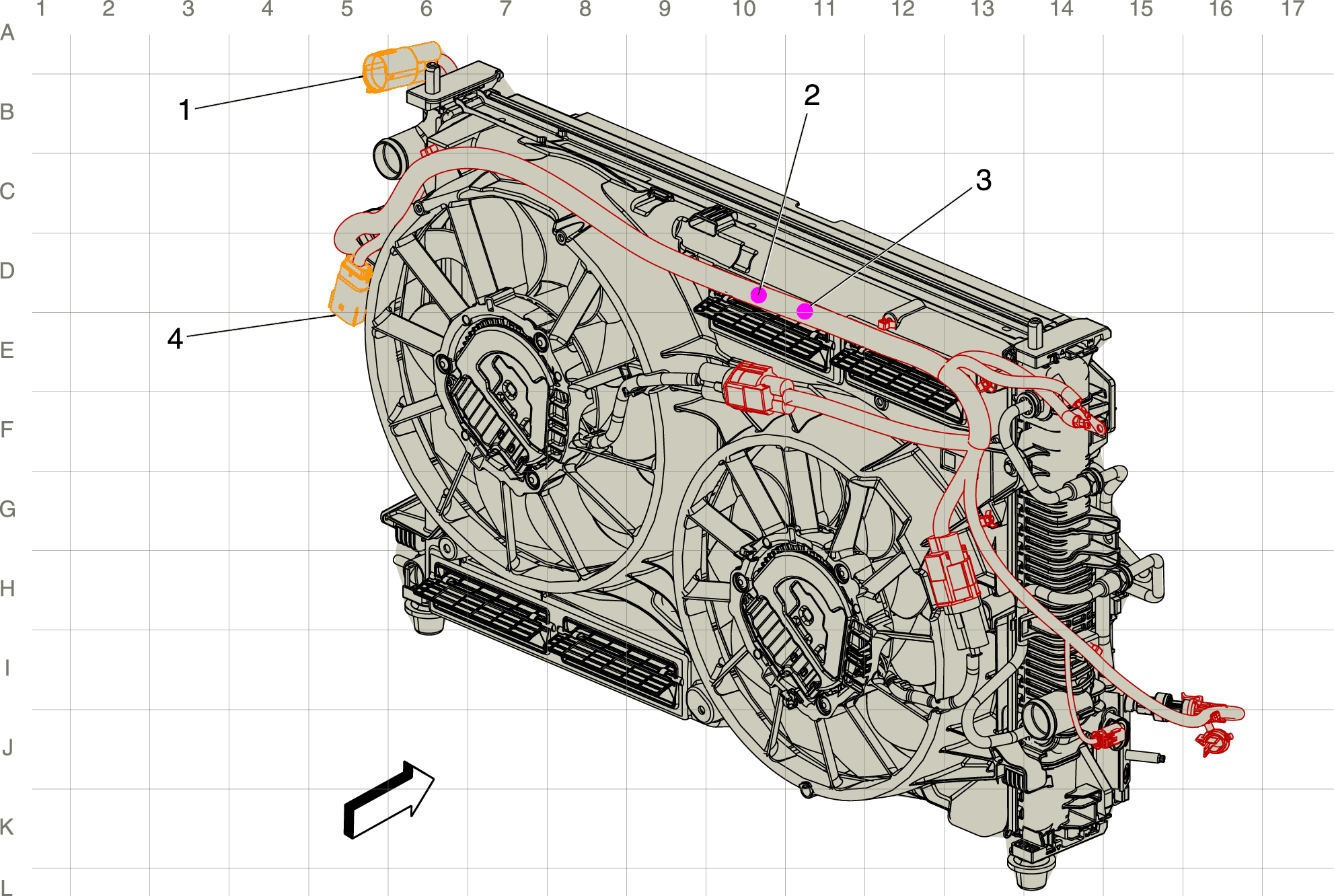

Dual Cooling Fans Harness Routing (LGX)
Dual Cooling Fans Harness Routing (LGX)
| Harness Name | Callout |
|---|---|
| X118 Body Harness to Cooling Fan Harness X118 Body Harness to Cooling Fan Harness (LGX) | 1 |
| J149 Cooling Fan Harness (LGX) | 2 |
| J114 Cooling Fan Harness (LGX) | 3 |
| X117 Engine Harness to Cooling Fan Harness X117 Engine Harness to Cooling Fan Harness | 4 |
