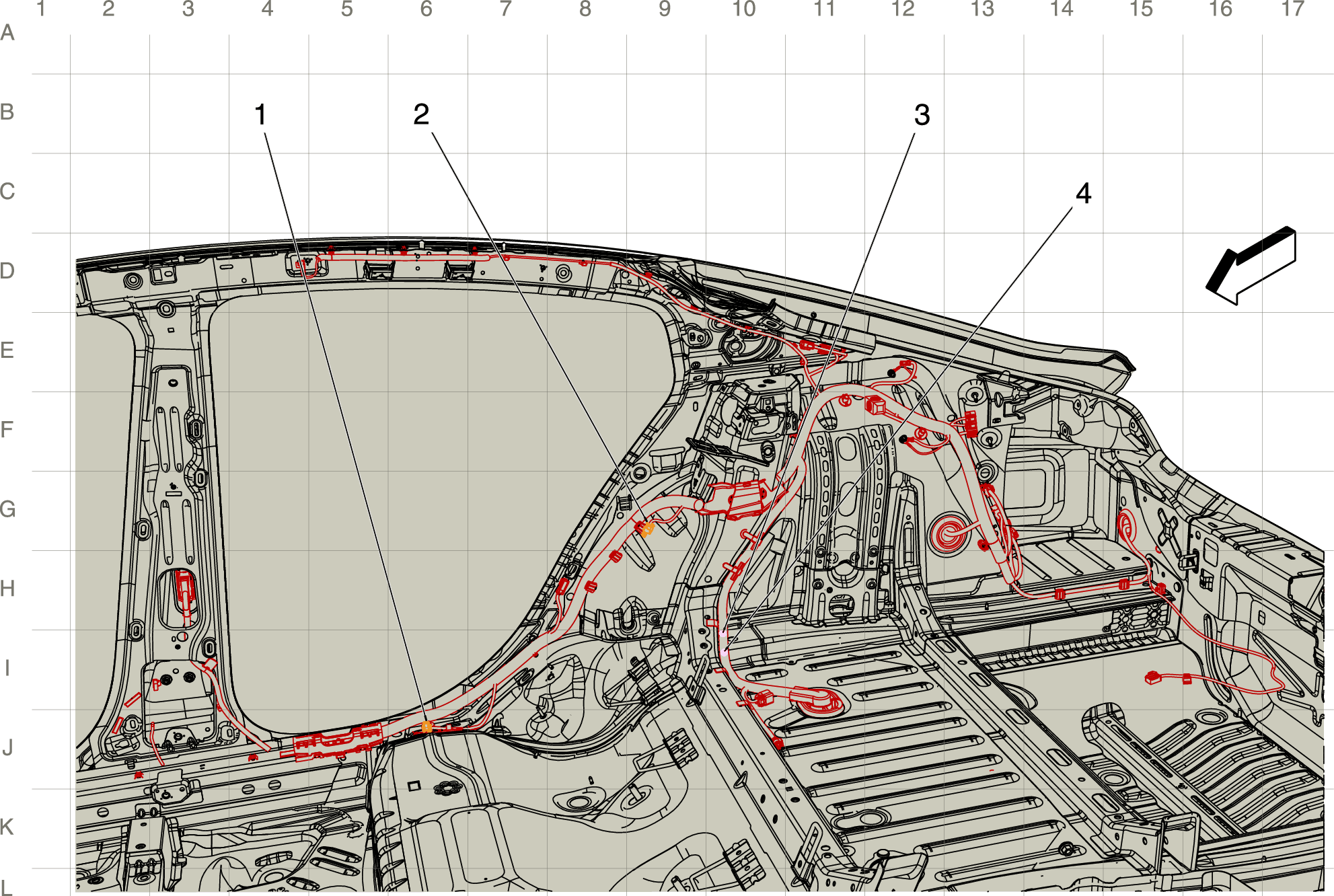

Body Harness Routing - Passenger Compartment - Right Rear
Body Harness Routing - Passenger Compartment - Right Rear
| Harness Name | Callout |
|---|---|
| X340 Right Rear Folding Seat Motor Jumper Harness to Body Harness (A9U) X340 Right Rear Folding Seat Motor Jumper Harness to Body Harness (A9U) | 1 |
| X322 Body Harness to Right Rear Seat Side Air Bag Jumper Harness X322 Body Harness to Right Rear Seat Side Air Bag Jumper Harness | 2 |
| J386 Body Harness (F46) | 3 |
| J385 Body Harness (F46) | 4 |
