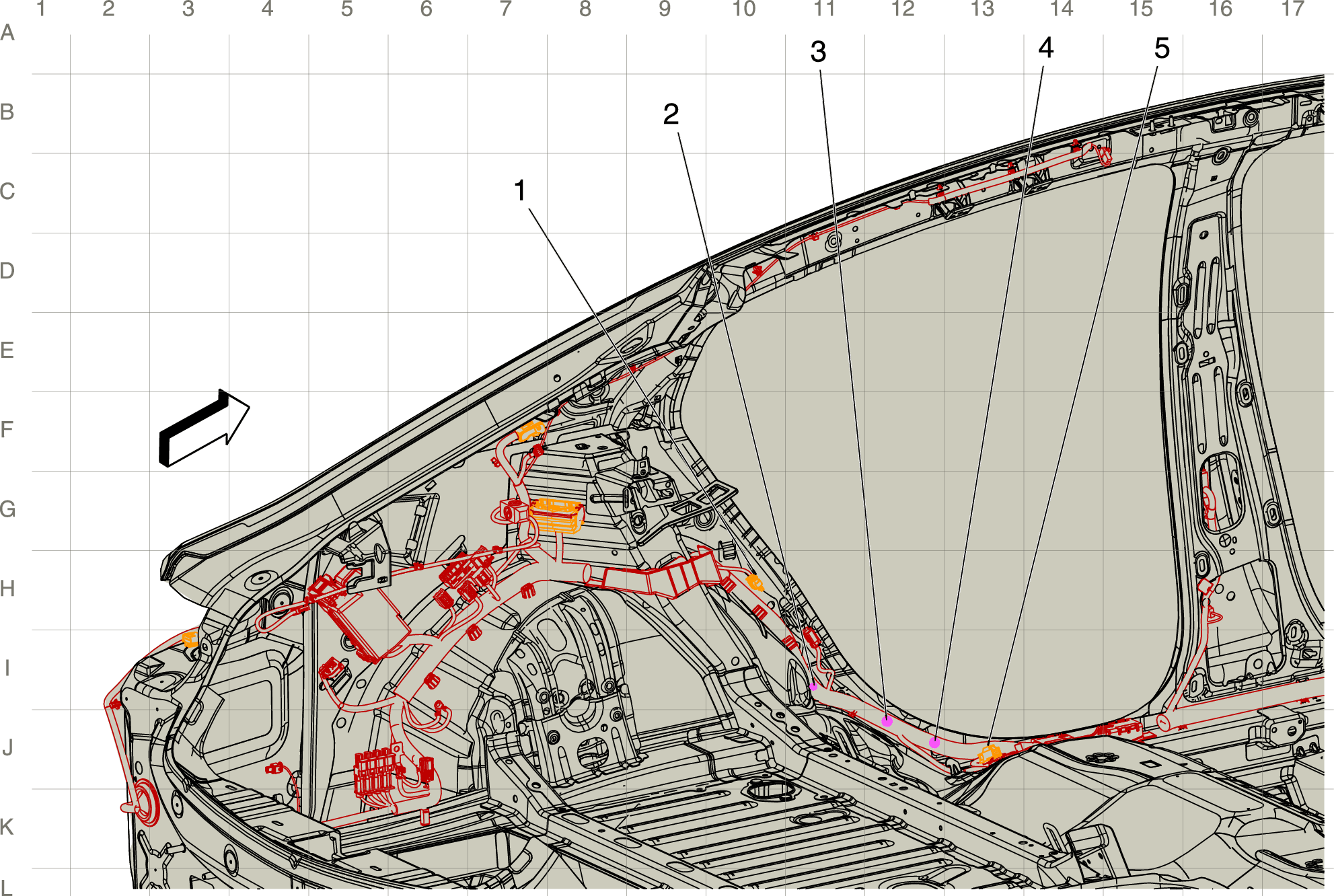

Body Harness Routing - Passenger Compartment - Left Rear
Body Harness Routing - Passenger Compartment - Left Rear
| Harness Name | Callout |
|---|---|
| X321 Body Harness to Left Rear Seat Side Air Bag Jumper Harness X321 Body Harness to Left Rear Seat Side Air Bag Jumper Harness | 1 |
| J352 Body Harness (C93) | 2 |
| J393 Body Harness (A9U) | 3 |
| J209 Body Harness | 4 |
| X330 Left Rear Folding Seat Motor Jumper Harness to Body Harness (A9U) X330 Left Rear Folding Seat Motor Jumper Harness to Body Harness | 5 |
