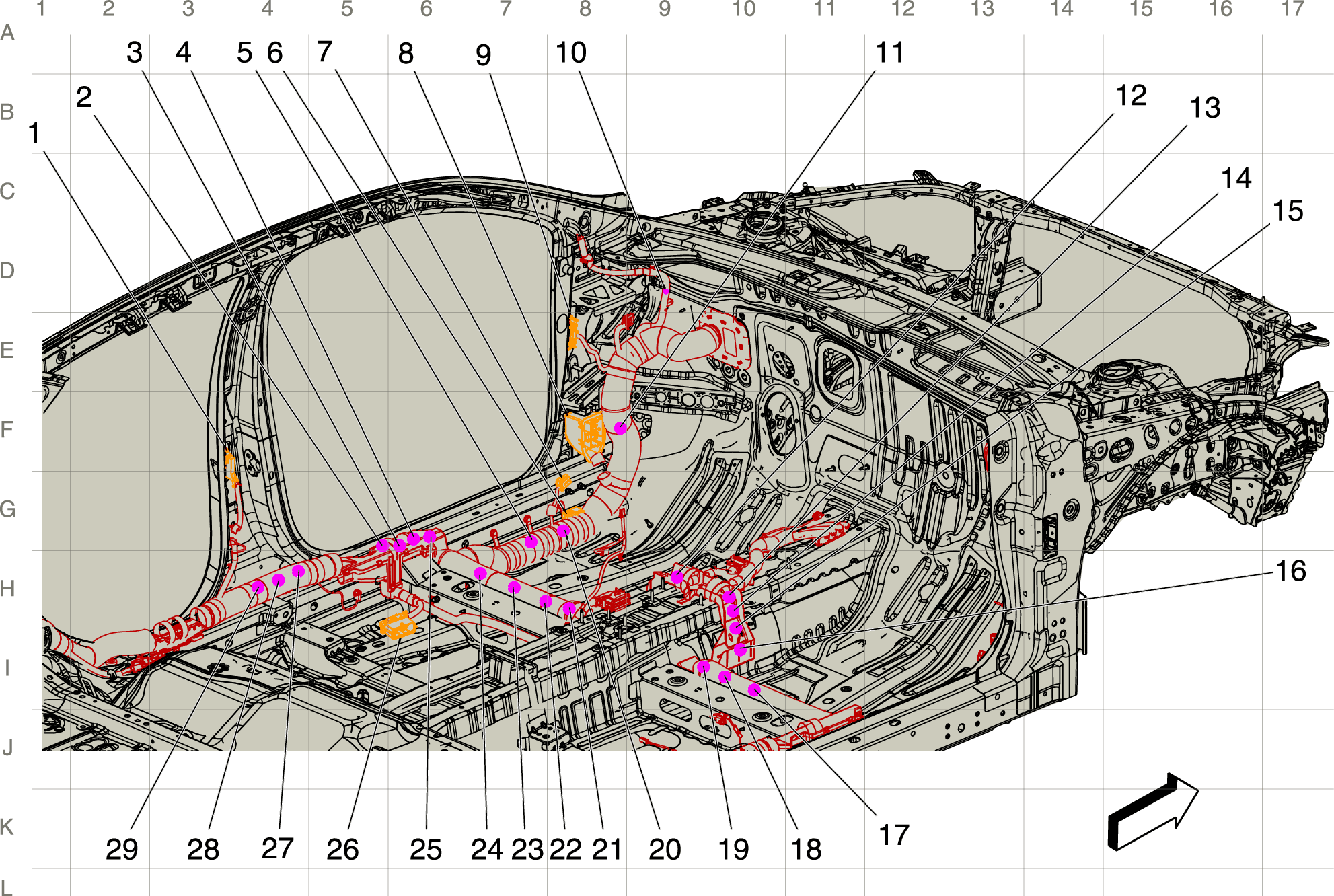

Body Harness Routing - Passenger Compartment - Left Front
Body Harness Routing - Passenger Compartment - Left Front
| Harness Name | Callout |
|---|---|
| X700 Left Rear Door Harness to Body Harness X700 Left Rear Door Harness to Body Harness | 1 |
| J307 Body Harness | 2 |
| J325 Body Harness (KU9/UVC) | 3 |
| J410 Body Harness (UGN/UHX/UKC) | 4 |
| J312 Headliner Harness | 5 |
| X209 Instrument Panel Harness to Body Harness X209 Instrument Panel Harness to Body Harness | 6 |
| X211 Body Harness to Instrument Panel Harness X211 Body Harness to Instrument Panel Harness (LGX) | 7 |
| X210 Instrument Panel Harness to Body Harness X210 Instrument Panel Harness to Body Harness | 8 |
| X500 Driver Door Harness to Body Harness X500 Door Harness to Body Harness | 9 |
| J337 Body Harness (DD8) | 10 |
| J104 Body Harness | 11 |
| J353 Body Harness (UTT) | 12 |
| J308 Body Harness | 13 |
| J203 Body Harness | 14 |
| J329 Body Harness | 15 |
| J324 Body Harness (A44/A45) | 16 |
| J305 Body Harness (C93) | 17 |
| J304 Body Harness | 18 |
| J321 Body Harness | 19 |
| J155 Body Harness (TR6) | 20 |
| J102 Body Harness | 21 |
| J180 Body Harness | 22 |
| J344 Body Harness | 23 |
| J208 Body Harness | 24 |
| J336 Body Harness | 25 |
| X310 Driver Seat Harness to Body Harness X310 Driver Seat Harness to Body Harness | 26 |
| J354 Body Harness | 27 |
| J363 Body Harness | 28 |
| J340 Body Harness | 29 |
