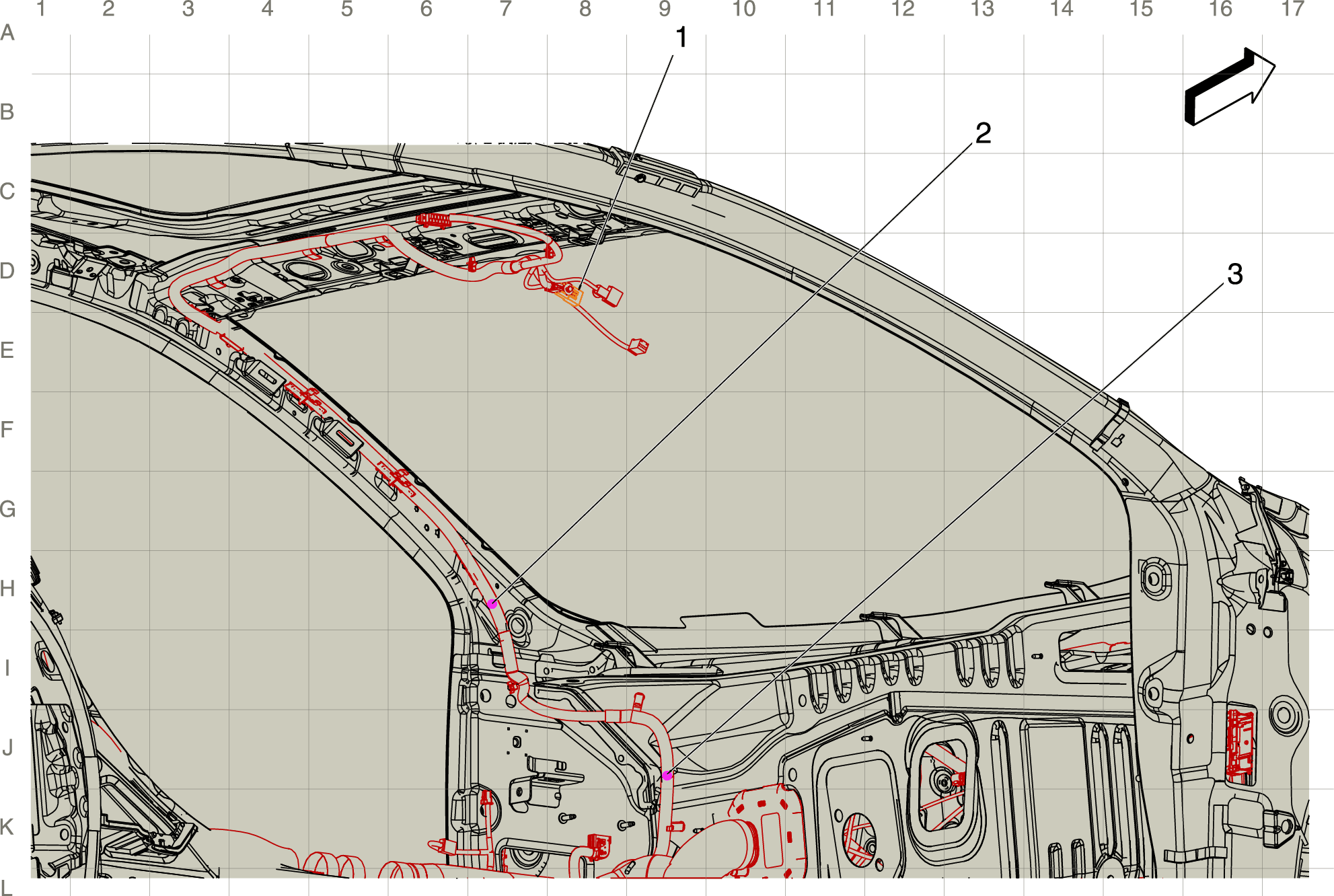

Body Harness Routing - Passenger Compartment - Left A-Pillar and Roof
Body Harness Routing - Passenger Compartment - Left A-Pillar and Roof
| Harness Name | Callout |
|---|---|
| X325 Windshield Sensor Jumper Harness to Body Harness X325 Windshield Sensor Jumper Harness to Body Harness | 1 |
| J200 Body Harness (DD8) | 2 |
| J337 Body Harness (DD8) | 3 |
