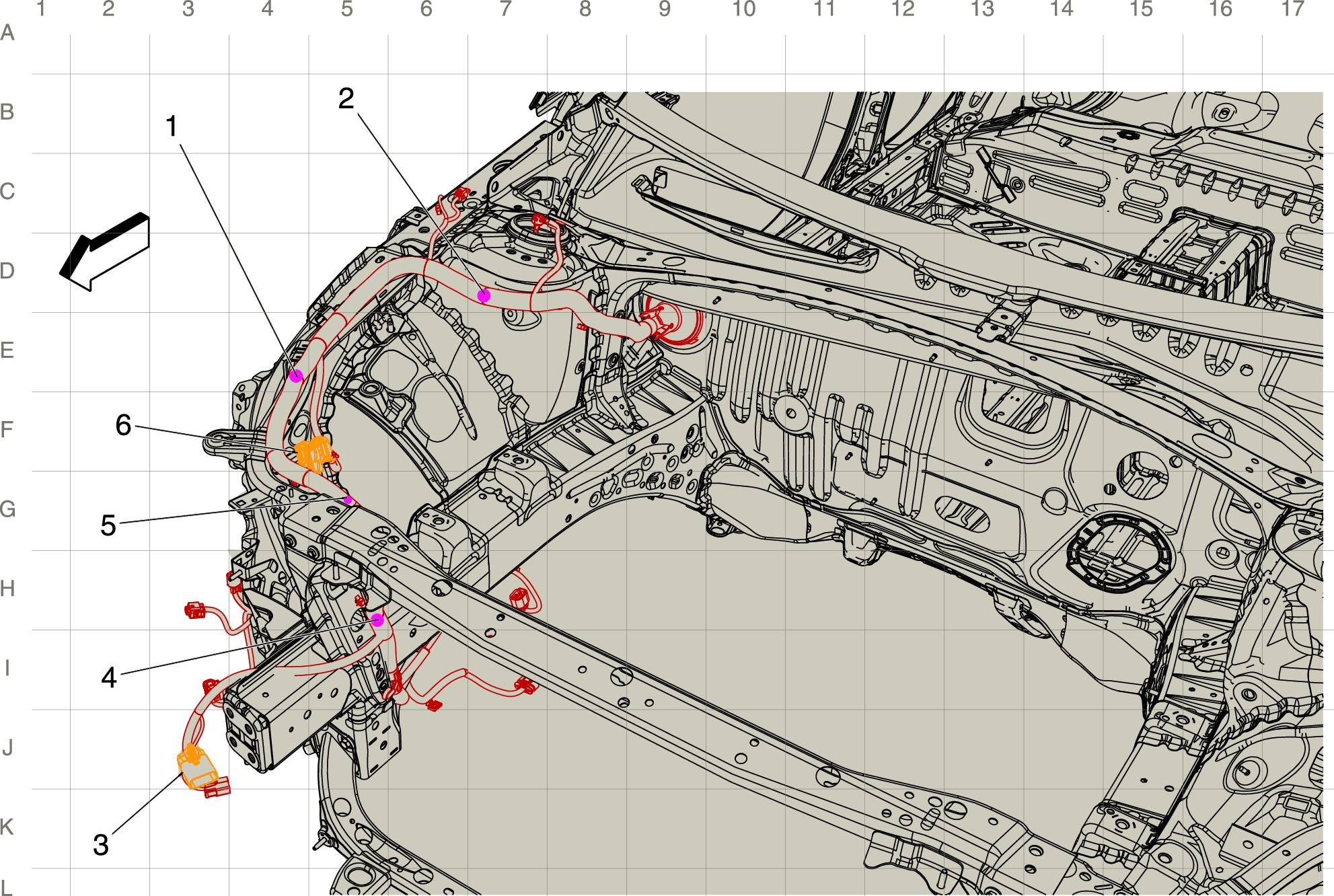

Body Harness Routing - Engine Compartment - Right
Body Harness Routing - Engine Compartment - Right
| Harness Name | Callout |
|---|---|
| J255 Body Harness (TR6) | 1 |
| J185 Body Harness | 2 |
| X116 Front Fascia Harness to Body Harness (UD5/UD7) X116 Front Fascia Harness to Body Harness (UD5/UD7) | 3 |
| J130 Body Harness | 4 |
| J140 Body Harness | 5 |
| X120 Body Harness to Right Headlamp Harness X120 Body Harness to Right Headlamp Harness | 6 |
