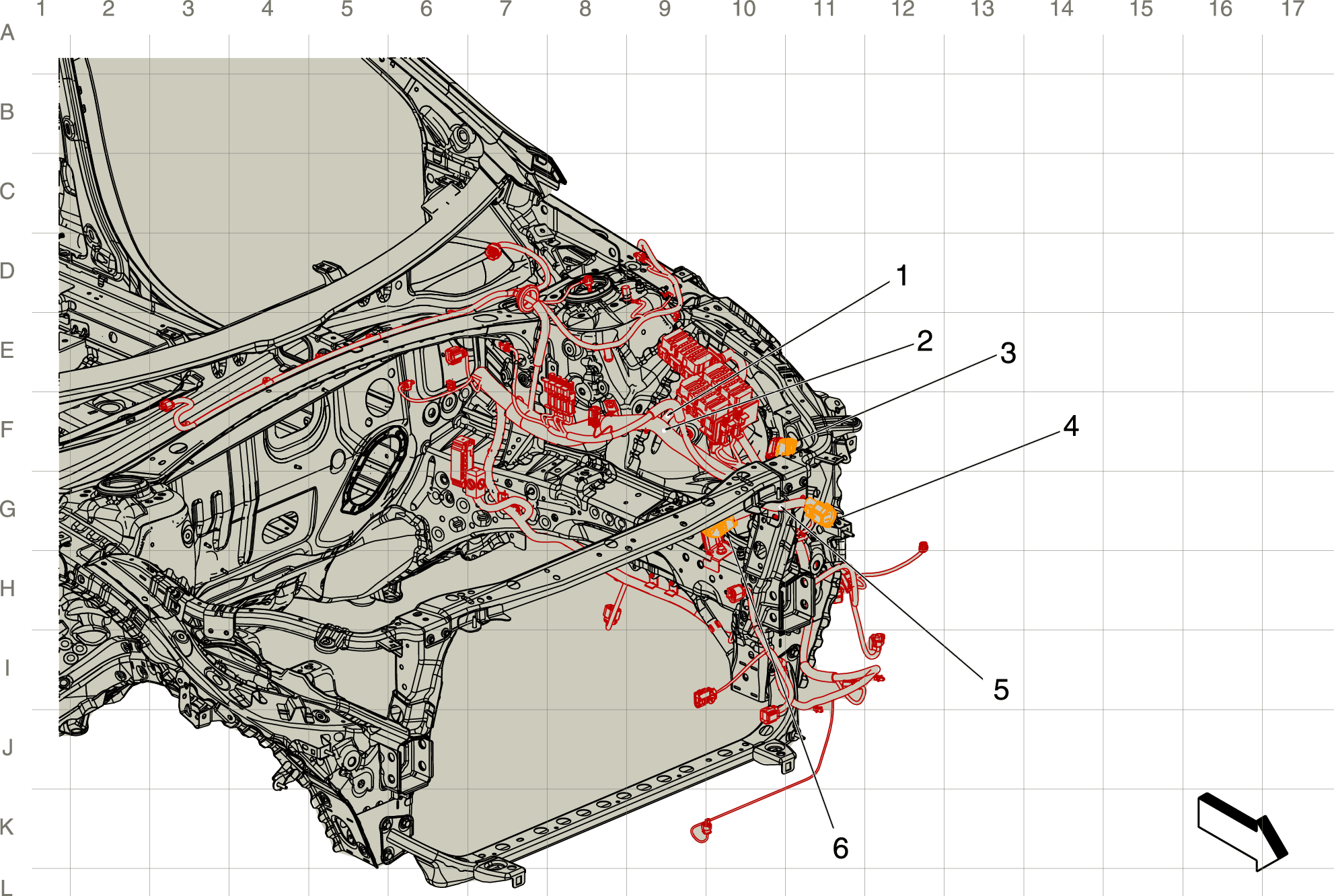

Body Harness Routing - Engine Compartment - Left
Body Harness Routing - Engine Compartment - Left
| Harness Name | Callout |
|---|---|
| J100 Body Harness | 1 |
| J131 Body Harness | 2 |
| X110 Body Harness to Left Headlamp Assembly Harness X110 Body Harness to Left Headlamp Assembly Harness | 3 |
| X118 Body Harness to Cooling Fan Harness X118 Body Harness to Cooling Fan Harness (LGX) | 4 |
| J135 Body Harness | 5 |
| X115 Engine Harness to Body Harness X115 Engine Harness to Body Harness | 6 |
