Front Wheelhouse Liner Replacement (LGX)

Courtesy of GENERAL MOTORS COMPANY

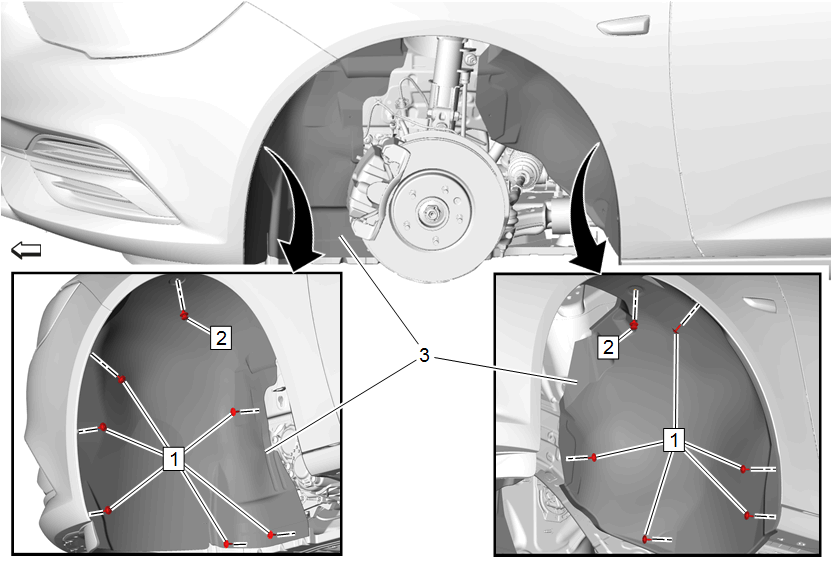

Callout	Component Name
Preliminary Procedure  Tire and Wheel Removal and Installation
1	Front Wheelhouse Liner Bolt [11x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Wheelhouse Liner Retainer [2x]
3	Front Wheelhouse Liner
