Home >> Buick >> 2019 >> Regal Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Driver Information and Shift Lever Indicator

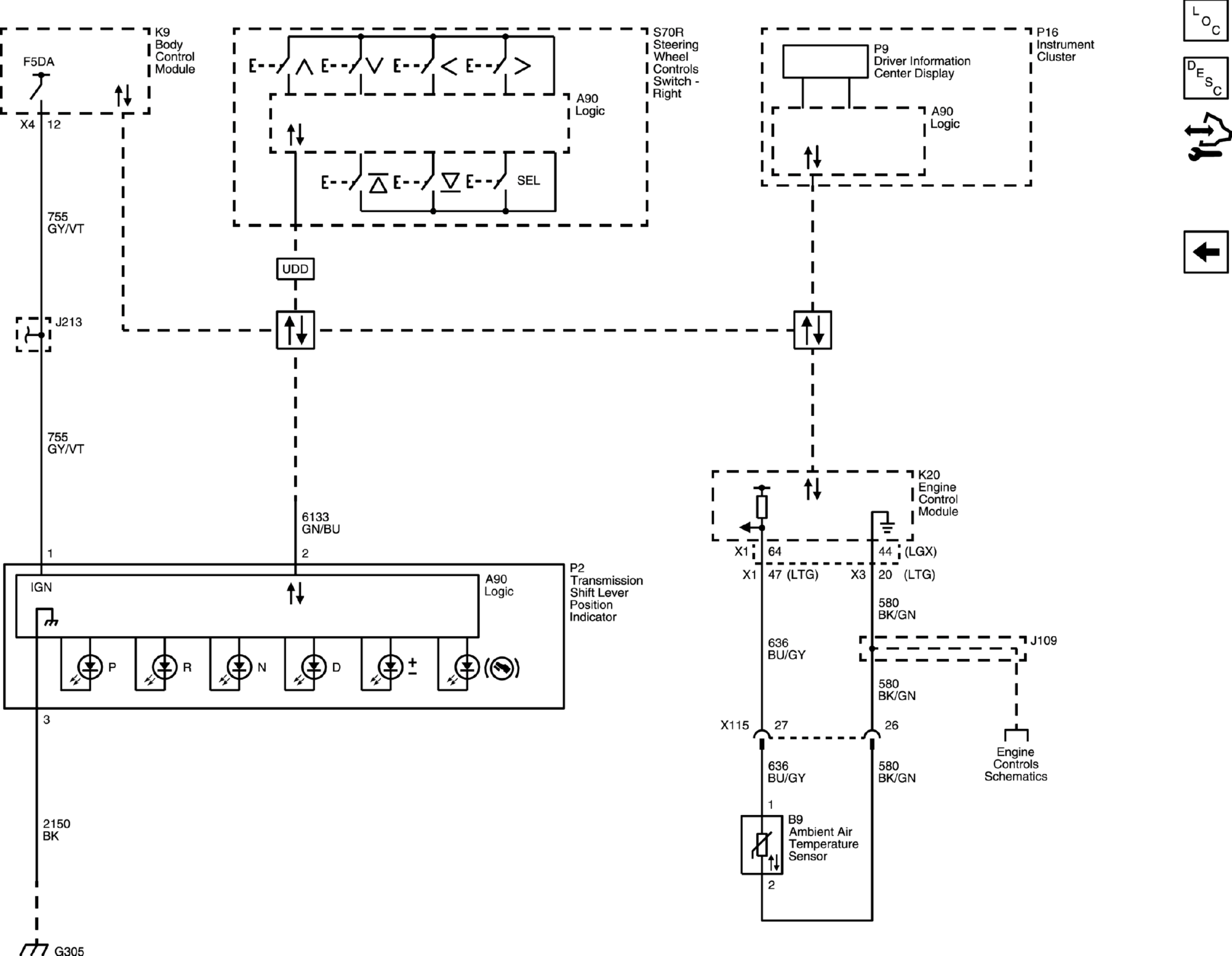

Driver Information and Shift Lever Indicator

GM5207522

Courtesy of GENERAL MOTORS COMPANY
