X303 Body Harness to Left Rear Seat Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

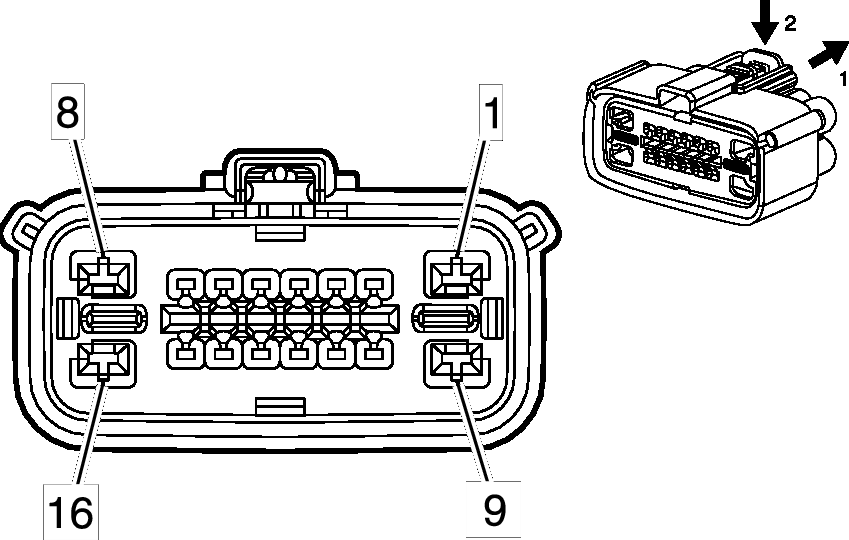

Connector Part Information
- Harness Type: Body
- OEM Connector: 34985-1955
- Service Connector: 19353140
- Description: 16-Way F 1.5, 2.8 Series, Sealed (YE)
|

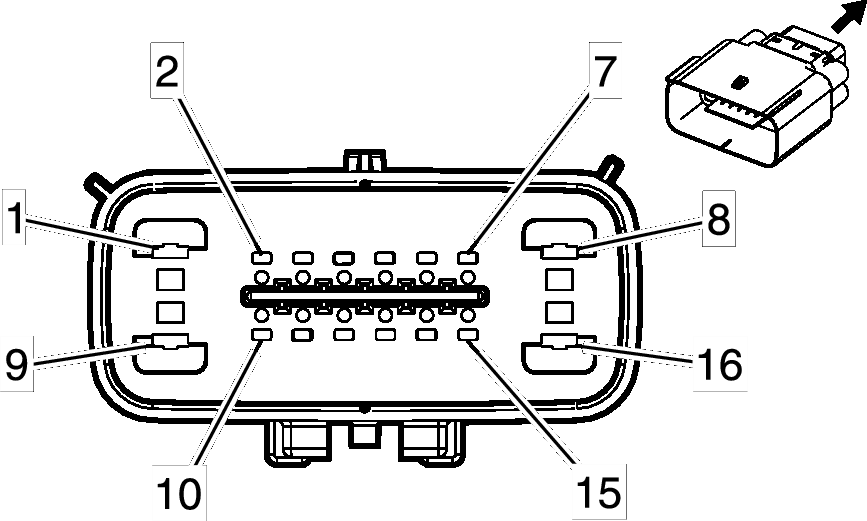

Connector Part Information
- Harness Type: Left Rear Seat
- OEM Connector: 13593417
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way M 1.5, 2.8 Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575808 |
J-35616-2A (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13575809 |
J-35616-2A (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13576376 |
J-35616-35 (VT) |
J-38125-12A |
1326030-6 |
Lear 17 |
E |
C |
| IV |
13576377 |
J-35616-35 (VT) |
J-38125-12A |
1326030-8 |
Lear 17 |
4 |
D |
| V |
13578813 |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| VI |
19300635 |
J-35616-2A (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| VII |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD/GN |
1840 |
III |
KA6 |
Battery Positive Voltage |
1 |
0.75 |
RD/GY |
1740 |
VII |
KA6 |
| 2 |
- |
- |
- |
- |
- |
Not Occupied |
2 |
- |
- |
- |
- |
- |
| 3 |
0.5 |
RD/GY |
3540 |
VI |
KA6 |
Battery Positive Voltage |
3 |
0.5 |
RD/GY |
3540 |
VII |
KA6 |
| 4 - 6 |
- |
- |
- |
- |
- |
Not Occupied |
4 - 6 |
- |
- |
- |
- |
- |
| 7 |
0.35 |
OG/GY |
5223 |
V |
- |
Left Rear Side Impact SIR Inflator Control |
7 |
0.35 |
OG/GY |
5223 |
VII |
- |
| 8 |
0.75 |
BN/VT |
2077 |
III |
KA6 |
Driver Heated Seat Element Control |
8 |
0.75 |
BN/VT |
2077 |
VII |
KA6 |
| 9 |
2.5 |
BK |
2550 |
IV |
KA6 |
Ground |
9 |
2.5 |
BK |
2550 |
VII |
KA6 |
| 10 |
0.5 |
BK/YE |
2080 |
VI |
KA6 |
Driver Heated Seat NTC Low Reference |
10 |
0.5 |
BK/YE |
2080 |
VII |
KA6 |
| 11 |
0.5 |
YE/GY |
2079 |
VI |
KA6 |
Driver Heated Seat NTC Signal |
11 |
0.5 |
YE/GY |
2079 |
VII |
KA6 |
| 12 |
0.75 |
BN/BK |
2078 |
I |
KA6 |
Driver Heated Seat Element Low Reference |
12 |
0.75 |
BN/BK |
2078 |
VII |
KA6 |
| 13 |
0.5 |
BU |
2425 |
VI |
KA6 |
Driver Heated Back NTC Signal |
13 |
0.5 |
BU |
2425 |
VII |
KA6 |
| 14 |
0.35 |
GN/BU |
6133 |
II |
KA6 |
Local Interconnect Network Serial Data Bus 2 |
14 |
0.35 |
GN/BU |
6133 |
VII |
KA6 |
| 15 |
0.35 |
BN/OG |
5224 |
V |
- |
Left Rear Side Impact SIR Inflator Control |
15 |
0.35 |
BN/OG |
5224 |
VII |
- |
| 16 |
0.75 |
BN |
2432 |
III |
- |
Driver Heated Back Element Control |
16 |
0.75 |
BN |
2432 |
VII |
- |
