X301 Driver Seat Harness to Body Harness

GM4204560Courtesy of GENERAL MOTORS COMPANY

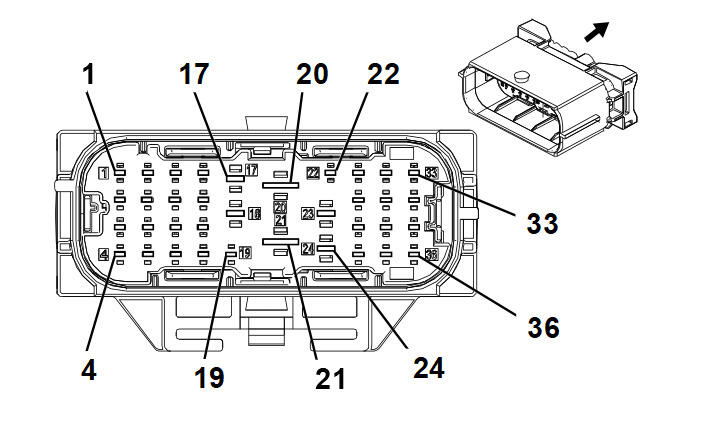

GM3960400Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Driver Seat
  • OEM Connector: 13583074
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 36-Way F 1.5, 2.8 CTS, 6.3 MCP Series (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13583076
  • Service Connector: 19330685
  • Description: 36-Way M 1.5, 2.8, 5.8 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required Not Available No Tool Required Not Required Not Required Not Required Not Required
II 13327188 J-35616-3 (GY) J-38125-215A Not Available Not Available Not Available Not Available
III 13575593 J-35616-34 (YE) EL-38125-560-A 964265-2 Lear 28 E 2
IV 13579985 J-35616-3 (GY) J-38125-215A Not Available Not Available Not Available Not Available
V 13582335 J-35616-3 (GY) J-38125-215A Not Available Not Available Not Available Not Available
VI 13584548 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
VII Not Required J-35616-43 (RD) J-38125-36 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 - - - - - Not Occupied 1 - - - - -
2 0.35 VT/BK 339 I KB6 Run/Crank Ignition 1 Voltage 2 0.35 VT/BK 339 II KB6
3 0.35 VT/BU 6217 I KB6 Left Front Seat Cushion Climate Control Blower Motor Speed Control 3 0.35 VT/BU 6217 II KB6
4 0.5 RD/GN 1540 I - Battery Positive Voltage 4 0.5 RD/GN 1540 V -
5 - 8 - - - - - Not Occupied 5 - 8 - - - - -
9 0.35 GN/WH 7530 I A45 Local Interconnect Network Serial Data Bus 8 9 0.35 GN/WH 7530 II A45
10 0.35 BU/GN 614 I A45 Memory Seat Switch Set Signal 10 0.35 BU/GN 614 III A45
11 0.35 BK/BU 5978 I A45 Memory Switch Low Reference 11 0.35 BK/BU 5978 II A45
12 0.35 WH 615 I A45 Memory Seat Switch Signal 1 12 0.35 WH 615 II A45
13 0.35 GN 5060 I A45 Low Speed GMLAN Serial Data 13 0.35 GN 5060 II A45
14 - 15 - - - - - Not Occupied 14 - 15 - - - - -
16 0.75 BN/VT 2077 I KB6 Driver Heated Seat Element Control 16 0.75 BN/VT 2077 V KB6
17 0.75 BN 2432 I - Driver Heated Back Element Control 17 0.75 BN 2432 VI -
18 - - - - - Not Occupied 18 - - - - -
19 0.5 RD/GN 3840 I A45 Battery Positive Voltage 19 0.5 RD/GN 3840 III A45
20 2 RD/VT 1640 I - Battery Positive Voltage 20 2 RD/VT 1640 VII -
21 2.5 BK 2350 I (UHX+UEU+EF7/Z49/CV3) Ground 21 2.5 BK 2350 VII (UHX+UEU+EF7/Z49/CV3)
22 0.75 BN/BK 2078 I KB6 Driver Heated Seat Element Low Reference 22 0.75 BN/BK 2078 V KB6
23 - 26 - - - - - Not Occupied 23 - 26 - - - - -
27 0.35 BK/OG 1363 I - Driver Seat Belt Switch Low Reference 27 0.35 BK/OG 1363 II -
28 0.35 OG/BN 238 I - Driver Seat Belt Switch Signal 28 0.35 OG/BN 238 II -
29 0.35 OG/GN 3481 I - Driver Seat Belt Anchor Pretensioner High Control 29 0.35 OG/GN 3481 IV -
30 0.35 YE/OG 3482 I - Driver Seat Belt Anchor Pretensioner Low Control 30 0.35 YE/OG 3482 IV -
31 - - - - - Not Occupied 31 - - - - -
32 0.5 BU 2425 I KB6 Driver Heated Back NTC Signal 32 0.5 BU 2425 V KB6
33 0.35 OG/BU 3068 I - Driver Side Impact Module High Control 33 0.35 OG/BU 3068 IV -
34 0.35 GN/OG 3069 I - Driver Side Impact Module Low Control 34 0.35 GN/OG 3069 IV -
35 0.5 BK/YE 2080 I KB6 Driver Heated Seat NTC Low Reference 35 0.5 BK/YE 2080 V KB6
36 0.5 YE/GY 2079 I KB6 Driver Heated Seat NTC Signal 36 0.5 YE/GY 2079 V KB6
