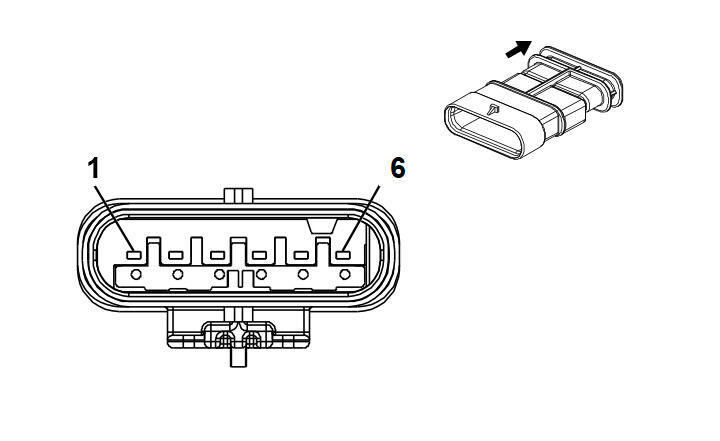

X207 Instrument Panel Harness to Instrument Panel Harness (AUJ)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 34900-6110
- Service Connector: 19353876
- Description: 6-Way F 1.2 MCON-LL Series, Sealed (YE)
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13581194
- Service Connector: 19354932
- Description: 6-Way M 1.2 MCON Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/OG |
3025 |
I |
- |
Passenger IP Module Stage 1 High Control |
1 |
0.5 |
YE/OG |
3025 |
II |
- |
| 2 |
0.5 |
OG/WH |
3024 |
I |
- |
Passenger IP Module Stage 1 Low Control |
2 |
0.5 |
OG/WH |
3024 |
II |
- |
| 3 |
0.5 |
GY/OG |
3027 |
I |
- |
Passenger IP Module Stage 2 High Control |
3 |
0.5 |
GY/OG |
3027 |
II |
- |
| 4 |
0.5 |
OG/VT |
3026 |
I |
- |
Passenger IP Module Stage 2 Low Control |
4 |
0.5 |
OG/VT |
3026 |
II |
- |
| 5 |
0.5 |
GN/OG |
4097 |
I |
- |
Passenger IP Module Stage 3 High Control |
5 |
0.5 |
GN/OG |
4097 |
II |
- |
| 6 |
0.5 |
OG/YE |
4096 |
I |
- |
Passenger IP Module Stage 3 Low Control |
6 |
0.5 |
OG/YE |
4096 |
II |
- |
