X202 Instrument Panel Harness to Body Harness

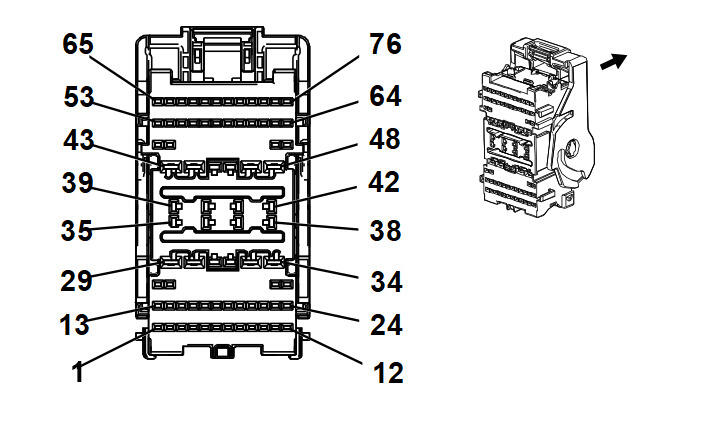

GM3960183Courtesy of GENERAL MOTORS COMPANY

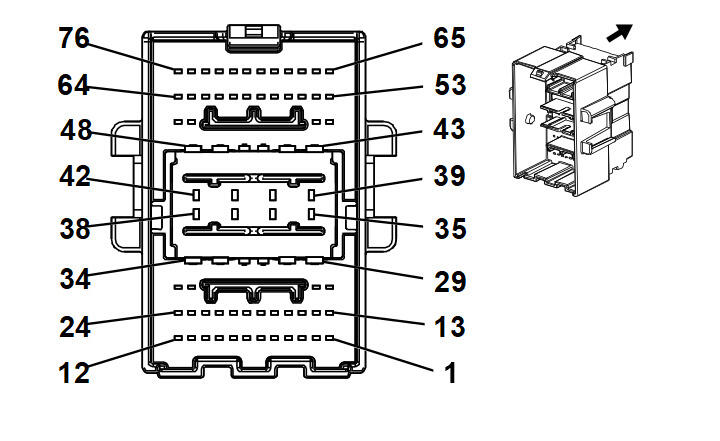

GM3960526Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 6098-8758
  • Service Connector: 84581287
  • Description: 76-Way F 1.2, 1.5, 2.8 YESC Series (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 6098-8295
  • Service Connector: 19355187
  • Description: 76-Way M 1.2 MCON-CB, 1.5, 2.8 YESC Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575708 J-35616-2A (GY) J-38125-11A Not Available Not Available Not Available Not Available
II 13575839 J-35616-35 (VT) J-38125-11A 7116-4111-02 Yazaki 9 E A
III 13575850 J-35616-14 (GN) J-38125-557 Not Available Not Available Not Available Not Available
IV 13580025 J-35616-4A (PU) J-38125-11A 7116-4111-02 Yazaki 9 C A
V 13582289 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
VI 13582322 J-35616-4A (PU) J-38125-11A 7116-4110-02 Yazaki 9 E C
VII 13587516 J-35616-4A (PU) J-38125-11A 7116-4112-02 Yazaki 9 C D
VIII 19300649 J-35616-16 (LT GN) J-38125-21 Not Available Not Available Not Available Not Available
IX 19331733 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
X 19368264 J-35616-35 (VT) J-38125-11A 7116-4112-02 Yazaki 9 C D
XI 19368264 J-35616-35 (VT) J-38125-11A Not Available Not Available Not Available Not Available
XII 13575818 J-35616-3 (GY) J-38125-553 Not Available Not Available Not Available Not Available
XIII 13575823 J-35616-5 (PU) J-38125-11A 7114-4110-02 Yazaki 9 E C
XIV 13575823 J-35616-5 (PU) J-38125-11A 7114-4111-02 Yazaki 9 C A
XV 13575823 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
XVI 13575824 J-35616-5 (PU) J-38125-11A 7114-4112-02 Yazaki 9 C D
XVII 13575824 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
XVIII 19330703 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
XIX 19330704 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
XX 19333303 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.5 BN/BK 3552 V - Passive Start Interior Antenna 1 Signal Hi 1 0.35 BN/BK 3552 XVIII -
2 0.5 WH 3553 V - Passive Start Interior Antenna 1 Signal Lo 2 0.35 WH 3553 XVIII -
3 0.75 BU 201 V UZ6 Left Front Speaker Control (+) 1 3 0.75 BU 201 XIX UZ6
4 0.75 BN/BU 118 V UZ6 Left Front Speaker Signal (-) 1 4 0.75 BN/BU 118 XIX UZ6
5 0.75 GN 199 VIII UZ6 Left Rear Speaker Control (+) 5 0.75 GN 199 XIX UZ6
6 0.75 GN/BK 116 V UZ6 Left Rear Speaker Signal (-) 6 0.75 GN/BK 116 XIX UZ6
7 0.75 YE 200 V UZ6 Right Front Speaker Control (+) 1 7 0.75 YE 200 XIX UZ6
8 0.75 YE/BK 117 V UZ6 Right Front Speaker Signal (-) 1 8 0.75 YE/BK 117 XIX UZ6
9 0.75 WH 46 V UZ6 Right Rear Speaker Control (+) 9 0.75 WH 46 XIX UZ6
10 0.75 BU/BK 115 V UZ6 Right Rear Speaker Signal (-) 10 0.75 BU/BK 115 XIX UZ6
11 0.35 GN/YE 7066 V UZ6 Entertainment Remote Enable Signal 11 0.35 GN/YE 7066 XVIII UZ6
12 0.35 WH/VT 3999 V UQA MOST Control 12 0.35 WH/VT 3999 XVIII UQA
13 0.35 WH/YE 7557 V - LED Ambient Lighting Control 1 13 0.35 WH/YE 7557 XVIII -
14 - 16 - - - - - Not Occupied 14 - 16 - - - - -
17 0.35 GN/GY 6135 V - Local Interconnect Network Serial Data Bus 4 17 0.35 GN/GY 6135 XVIII -
18 0.5 BK 2450 V - Ground 18 0.5 BK 2450 XIX -
19 - 20 - - - - - Not Occupied 19 - 20 - - - - -
21 0.35 GN/WH 1324 V EF7/Z49/CV3+IO5/IO6 Backup Lamp Control 21 0.35 GN/WH 1324 XVIII EF7/Z49/CV3+IO5/IO6
22 - - - - - Not Occupied 22 - - - - -
23 0.35 BU/VT 1134 VIII - Park Brake Switch Signal 23 0.35 BU/VT 1134 XVIII -
24 0.35 GY/RD 7684 V - Park Brake Apply Switch Voltage Reference 24 0.35 GY/RD 7684 XVIII -
25 0.35 BN 6107 V - Park Brake Apply Switch Signal 25 0.35 BN 6107 XVIII -
26 0.35 BU/BK 6108 V - Park Brake Release Switch Signal 26 0.35 BU/BK 6108 XVIII -
27 0.35 YE/RD 7683 V - Park Brake Release Switch Voltage Reference 27 0.35 YE/RD 7683 XVIII -
28 0.35 YE 1492 VIII - Park Brake Switch Supply Voltage 28 0.35 YE 1492 XVIII -
29 2.5 RD/BN 440 X C3U Battery Positive Voltage 29 2.5 RD/BN 440 XVI C3U
30 0.75 RD/GY 1740 II - Battery Positive Voltage 30 0.75 RD/GY 1740 XV -
31 0.75 YE/WH 1860 III UQA Front Center Speaker Control (+) 31 0.75 YE/WH 1860 XII UQA
32 0.75 BU/YE 1960 III UQA Front Center Speaker (-) Low Reference 32 0.75 BU/YE 1960 XII UQA
33 2.5 RD/BN 3640 X - Battery Positive Voltage 33 2.5 RD/BN 3640 XVI -
34 2.5 RD/YE 3740 X - Battery Positive Voltage 34 2.5 RD/YE 3740 XVI -
35 - 36 - - - - - Not Occupied 35 - 36 - - - - -
37 0.75
0.75		 YE/BU
BU		 1856
201		 III
III		 UQA
UZ6		 Left Front Tweeter Speaker Control (+)
Left Front Speaker Control (+) 1		 37 0.75
0.75		 YE/BU
BU		 1856
201		 XII
XII		 UQA
UZ6
38 0.75
0.75		 YE/GY
BN/BU		 1956
118		 III
III		 UQA
UZ6		 Left Front Tweeter Speaker (-) Low Reference
Left Front Speaker Signal (-) 1		 38 0.75
0.75		 YE/GY
BN/BU		 1956
118		 XII
XII		 UQA
UZ6
39 0.5 YE/BU 5442 I CJ4 Endgate Window Regulator Up Signal 39 0.5 YE/BU 5442 XII CJ4
40 0.75
0.75		 VT/BN
YE/BK		 1952
117		 III
III		 UQA
UZ6		 Right Front Tweeter Speaker (-) Low Reference
Right Front Speaker Signal (-) 1		 40 0.75
0.75		 VT/BN
YE/BK		 1952
117		 XII
XII		 UQA
UZ6
41 0.75
0.75		 BN/GN
YE		 1852
200		 III
III		 UQA
UZ6		 Right Front Tweeter Speaker Control (+)
Right Front Speaker Control (+) 1		 41 0.75
0.75		 BN/GN
YE		 1852
200		 XII
XII		 UQA
UZ6
42 - - - - - Not Occupied 42 - - - - -
43 1 GY 295 IV - Door Lock Actuator Lock Control 43 1 GY 295 XIV -
44 0.5 RD/WH 4042 VI - Battery Positive Voltage 44 0.5 RD/WH 4042 XIII -
45 - 46 - - - - - Not Occupied 45 - 46 - - - - -
47 2 RD/VT 1640 VII - Battery Positive Voltage 47 2 RD/VT 1640 XVI -
48 1.5 RD/GN 2173 XI - 12V Regulated Supply Voltage 2 48 1.5 RD/GN 2173 XVII -
49 0.35 WH/GN 3997 V UQA MOST Serial Data (-) 49 0.35 WH/GN 3997 XVIII UQA
50 0.35 GY/VT 3998 V UQA MOST Serial Data (+) 50 0.35 GY/VT 3998 XVIII UQA
51 0.35 WH/GN 3997 V UQA MOST Serial Data (-) 51 0.35 WH/GN 3997 XVIII UQA
52 0.35 GY/VT 3998 V UQA MOST Serial Data (+) 52 0.35 GY/VT 3998 XVIII UQA
53 0.5 BU 3554 V - Passive Start Interior Antenna 2 Signal Hi 53 0.35 BU 3554 XVIII -
54 0.5 GY/BK 3555 V - Passive Start Interior Antenna 2 Signal Lo 54 0.35 GY/BK 3555 XVIII -
55 0.35 BU/YE 6105 V - High Speed GMLAN Serial Data (+) 2 55 0.35 BU/YE 6105 XVIII -
56 0.35 WH 6106 V - High Speed GMLAN Serial Data (-) 2 56 0.35 WH 6106 XVIII -
57 0.5 GN/OG 4097 IX - Passenger IP Module Stage 3 High Control 57 0.5 GN/OG 4097 XX -
58 0.5 OG/YE 4096 IX - Passenger IP Module Stage 3 Low Control 58 0.5 OG/YE 4096 XX -
59 0.5 BK/GY 3559 VIII - Passive Start Switch 2 Low Reference 59 0.5 BK/GY 3559 XIX -
60 0.5 VT/WH 239 V UVD Run/Crank Ignition 1 Voltage 60 0.5 VT/WH 239 XIX UVD
61 0.35 RD/GN 2440 V - Battery Positive Voltage 61 0.35 RD/GN 2440 XVIII -
62 0.75 GY/GN 3271 VIII - Door Lock Control 2 62 0.75 GY/GN 3271 XIX -
63 0.5 VT/YE 3267 V - Child Security Lock Relay Control 63 0.5 VT/YE 3267 XIX -
64 0.35 WH/BU 5986 V - Serial Data Communication Enable 64 0.35 WH/BU 5986 XVIII -
65 0.35 WH/ 6974 V - Camera Low Reference 65 0.35 BARE 6974 XVIII -
66 0.35 GY/YE 6972 V - Camera Signal 2 + 66 0.35 GY/YE 6972 XVIII -
67 0.35 WH/BU 6973 V - Camera Signal 2 67 0.35 WH/BU 6973 XVIII -
68 0.35 GN/BN 5852 V UD5/UD7/UFQ Rear Park Assist LED Disable Signal 68 0.5 GN/BN 5852 XIX UD5/UD7/UFQ
69 0.35 GY/GN 2555 V UD5/UD7/UFQ Rear Park Assist Disable Signal 69 0.5 GY/GN 2555 XIX UD5/UD7/UFQ
70 0.5 BU/VT 3813 V KSG High Speed GMLAN Serial Data (+) 4 70 0.5 BU/VT 3813 XIX KSG
71 0.5 WH 3811 V KSG High Speed GMLAN Serial Data (-) 4 71 0.5 WH 3811 XIX KSG
72 0.5 GY/GN 4083 V - RAP Relay 2 Coil Control 72 0.5 GY/GN 4083 XIX -
73 0.35 BU 655 V - Cellular Telephone Microphone Signal 73 0.35 BU 655 XVIII -
74 0.35 BK/BN 654 V - Cellular Telephone Microphone Low Reference 74 0.35 BK/BN 654 XVIII -
75 0.5 GN/BK 3558 V - Passive Start Switch Signal 2 75 0.5 GN/BK 3558 XIX -
76 - - - - - Not Occupied 76 - - - - -
