E43L Liftgate Tail Lamp Assembly - Left
 Courtesy of GENERAL MOTORS COMPANY
|

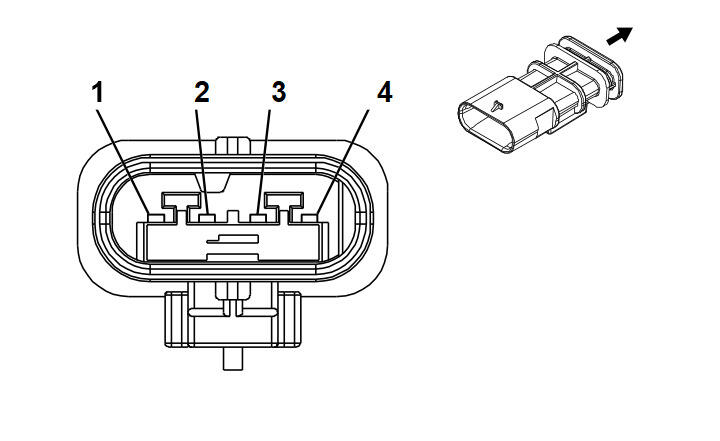

Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 2203321-3
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BK |
2550 |
Ground |
I |
- |
| 2 |
0.5 |
WH/YE |
1204 |
Left Park Lamp Control |
I |
- |
| 3 |
0.5 |
GY/YE |
7542 |
Left Rear Stop Lamp Control |
I |
- |
| 4 |
0.5 |
GN/WH |
1324 |
Backup Lamp Control |
I |
- |
