Right Rear Door Harness Routing

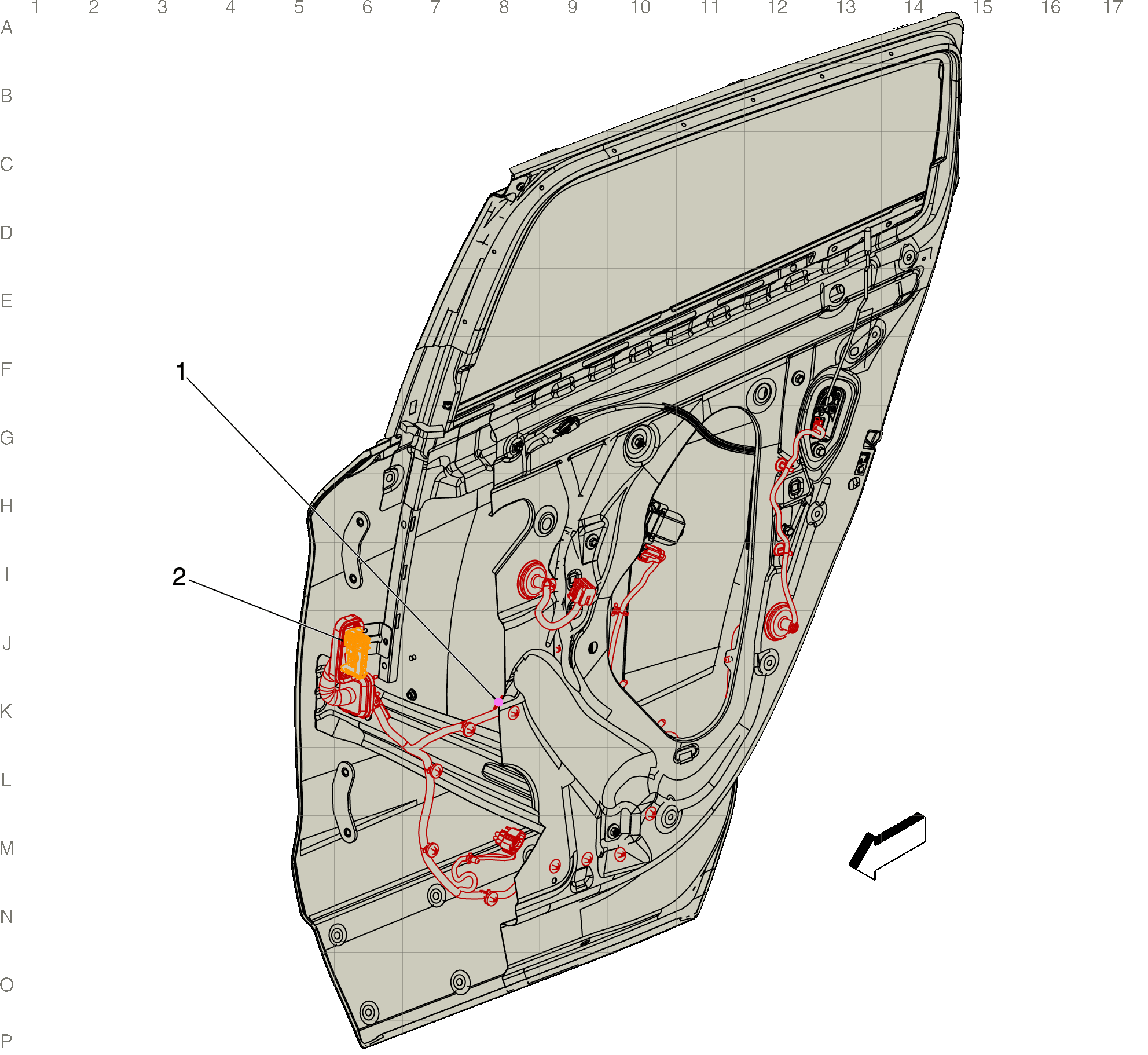

Fig 1: Right Rear Door Harness Routing
GM3951770Courtesy of GENERAL MOTORS COMPANY
Items
J800 Right Rear Door Panel Harness
X800 Right Rear Door Harness to Body Harness X800 Right Rear Door Harness to Body Harness
