Right Front of the Engine Compartment Harness Routing

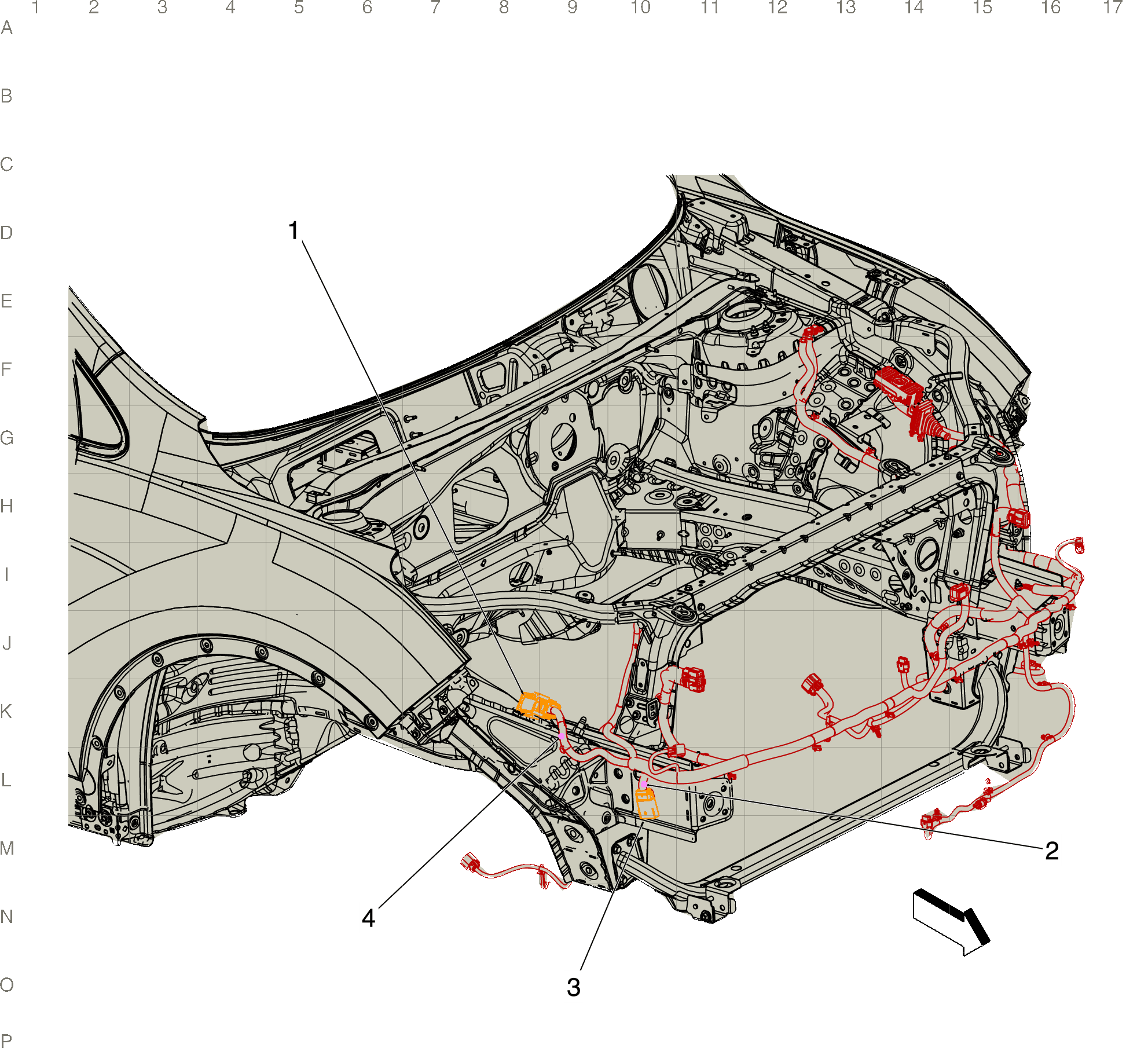

Fig 1: Right Front of the Engine Compartment Harness Routing
GM4004257Courtesy of GENERAL MOTORS COMPANY
Items
X106 Forward Lamp Harness to Body Harness X106 Forward Lamp Harness to Body Harness
J111 Forward Lamp Harness (UVH)
X123 Front Fascia Harness to Forward Lamp Harness X123 Front Fascia Harness to Forward Lamp Harness
J112 Forward Lamp Harness (UVH)
