Passenger Side Front Door Trim Harness Routing

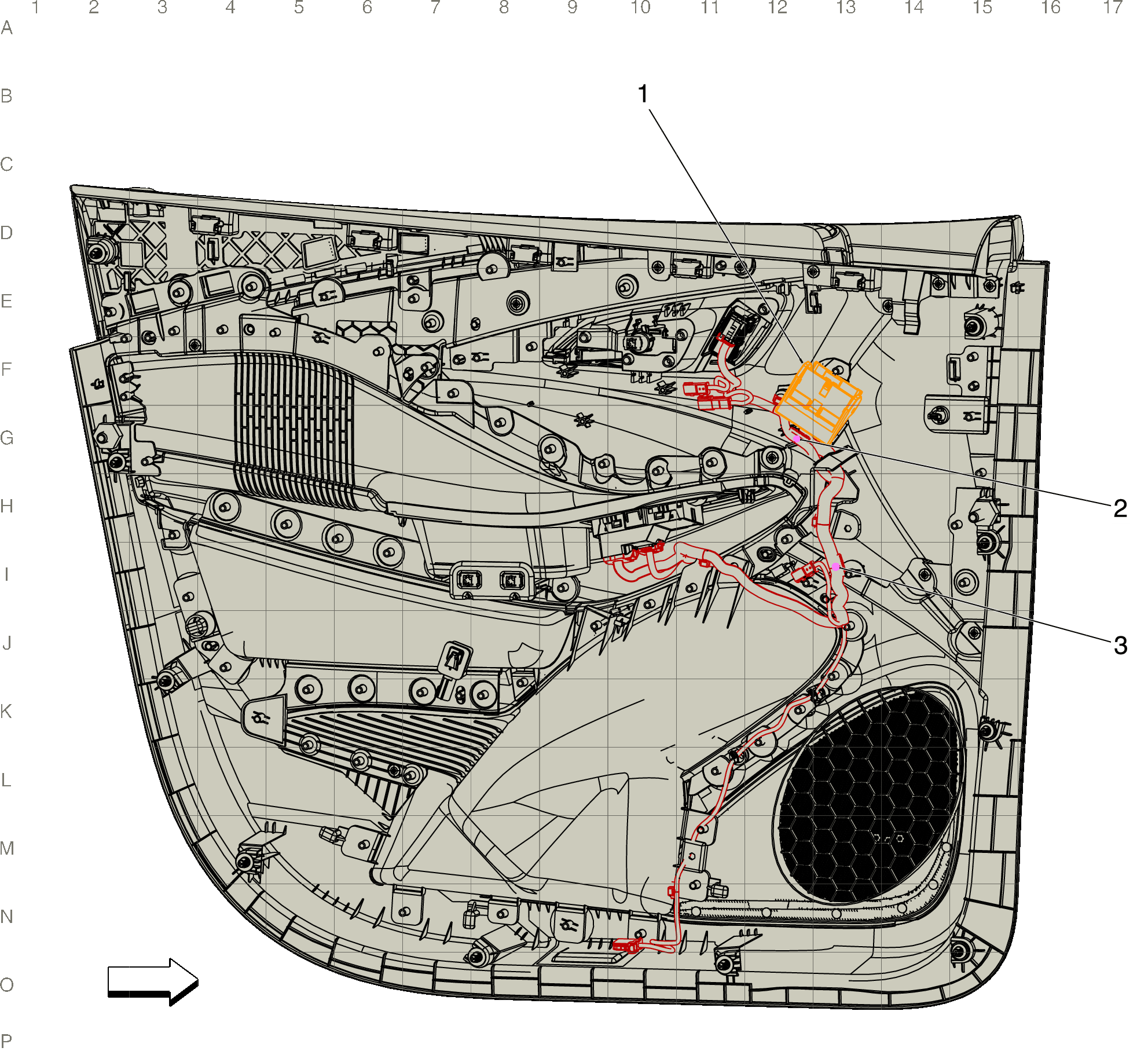

Fig 1: Passenger Side Front Door Trim Harness Routing
GM4004287Courtesy of GENERAL MOTORS COMPANY
Items
X601 Passenger Door Harness to Passenger Door Trim Harness X601 Passenger Door Harness to Passenger Door Trim Harness
J605 Passenger Door Panel Harness
J606 Passenger Door Panel Harness
