Passenger Door Harness Routing

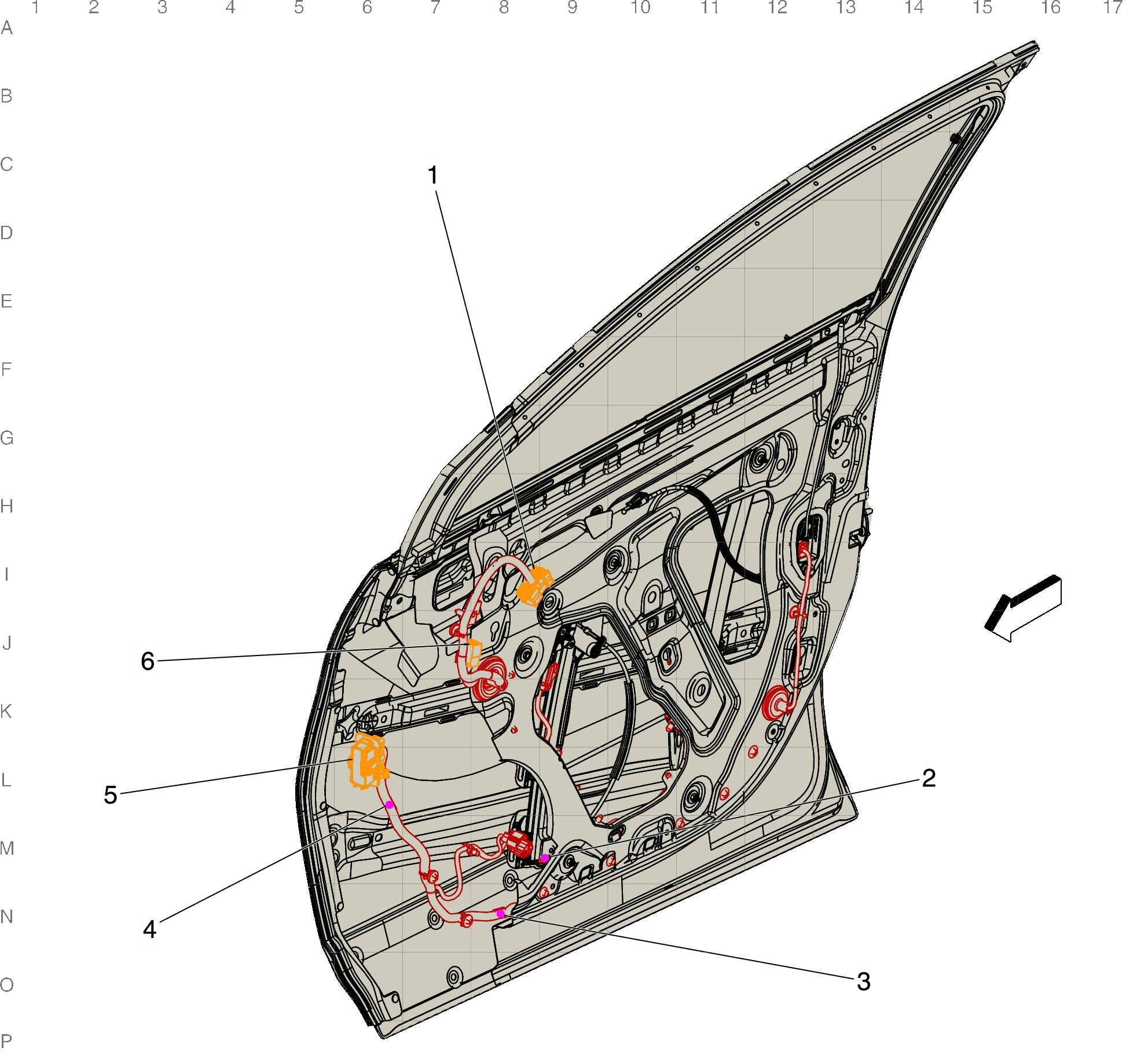

Fig 1: Passenger Door Harness Routing
GM4004286Courtesy of GENERAL MOTORS COMPANY
Items
X601 Passenger Door Harness to Passenger Door Trim Harness X601 Passenger Door Harness to Passenger Door Trim Harness
J603 Passenger Door Harness
J602 Passenger Door Harness
J600 Passenger Door Harness (UVH)
X600 Body Harness to Passenger Door Harness X600 Body Harness to Passenger Door Harness
X610 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness X610 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness
