Liftgate Extension Harness Routing

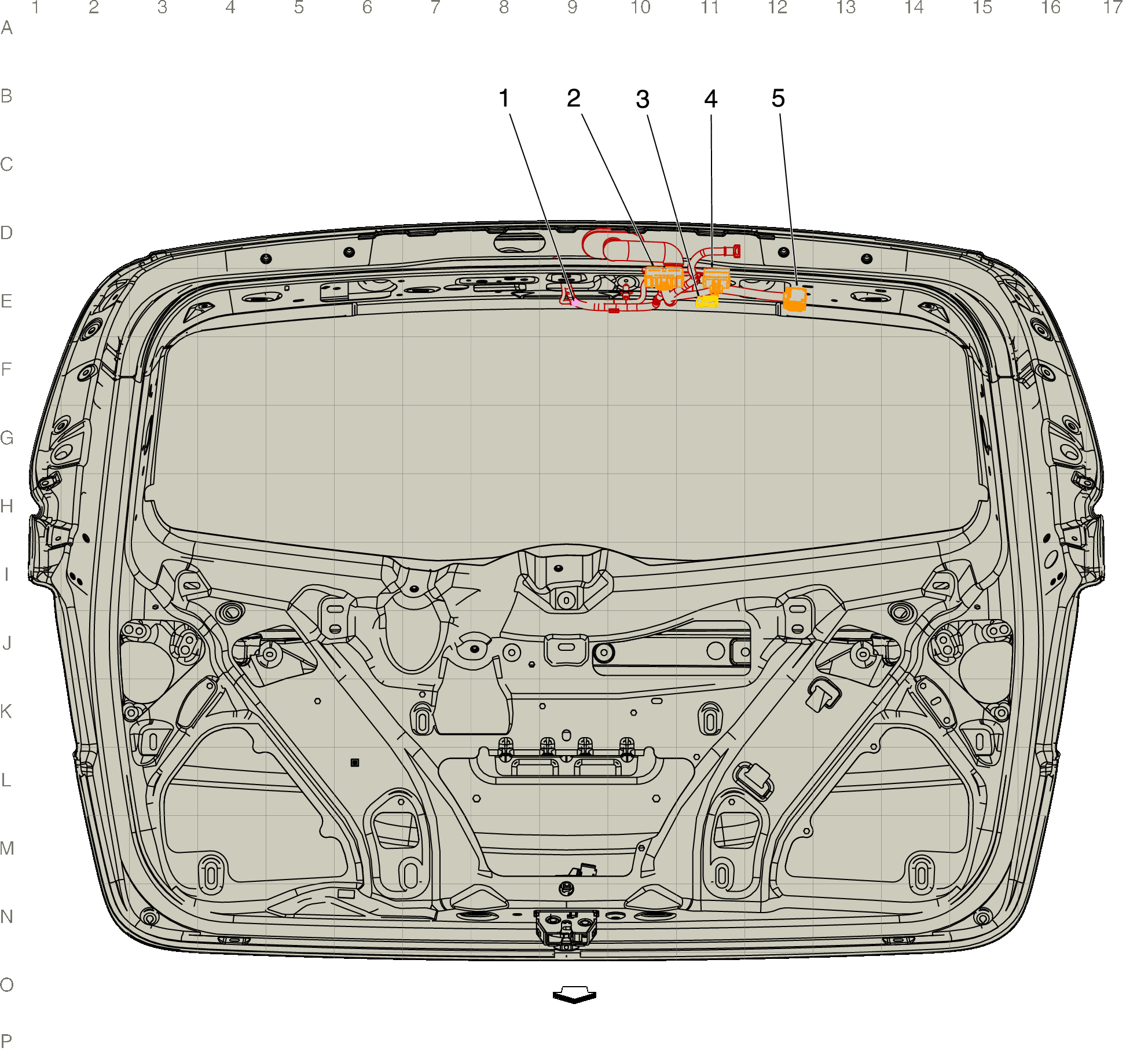

Fig 1: Liftgate Extension Harness Routing
GM4004267Courtesy of GENERAL MOTORS COMPANY
Items
J900 Liftgate Extension Harness
X904 Liftgate Extension Harness to Liftgate Harness X904 Liftgate Extension Harness to Liftgate Harness
X900 Liftgate Extension Harness to Body Harness X900 Liftgate Extension Harness to Body Harness
X901 Liftgate Extension Harness to Liftgate Harness X901 Liftgate Extension Harness to Liftgate Harness
X903 Liftgate Extension Harness to Body Harness X903 Liftgate Extension Harness to Body Harness
