Left Front of the Engine Compartment Harness Routing

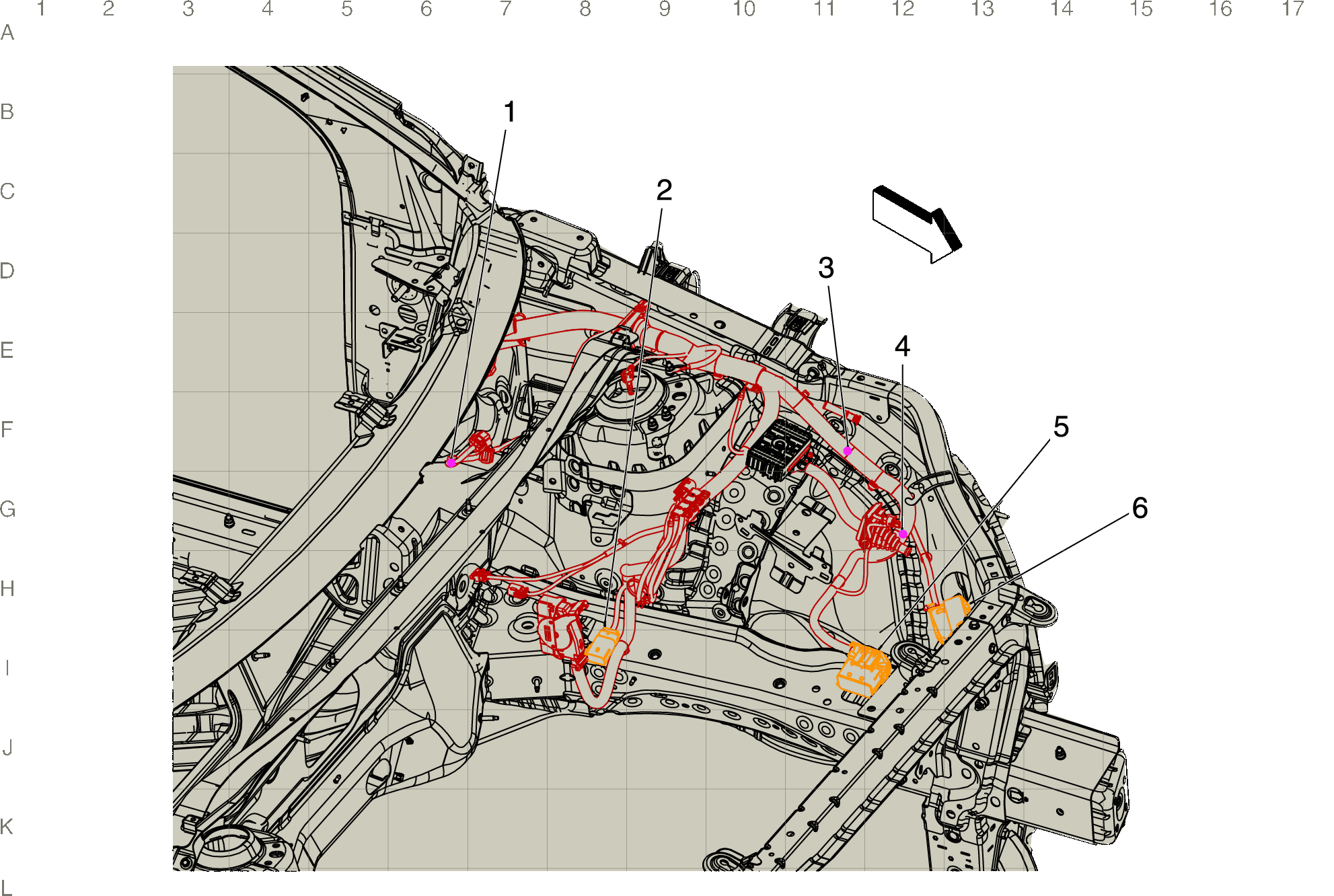

Fig 1: Left Front of the Engine Compartment Harness Routing
GM4004255Courtesy of GENERAL MOTORS COMPANY
Items
J129 Body Harness
X107 Power Steering Harness to Body Harness X107 Power Steering Harness to Body Harness
J127 Body Harness
J126 Body Harness
X112 Engine Harness to Body Harness X112 Engine Harness to Body Harness
X105 Body Harness to Forward Lamp Harness X105 Body Harness to Forward Lamp Harness
